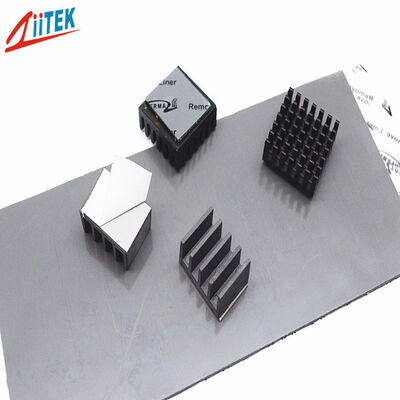

Ultra-Soft Thermal Pad Introduction High Thermal Conductivity Gap Pad For EV, 5G And High Density Computing

Ultra-Soft Thermal Pad Introduction High Thermal Conductivity Gap Pad For EV, 5G And High Density Computing

Ultra-Soft Thermal Pad Introduction High Thermal Conductivity Gap Pad For EV, 5G And High Density Computing
video
Ultra-Soft Thermal Pad Introduction High Thermal Conductivity Gap Pad For EV, 5G And High Density Computing
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF800QU
Document: TIF800QU_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Product Ame: Ultra-Soft Thermal Pad Introduction High Thermal Conductivity Gap Pad For EV, 5G And High Density Computing Thickness: 0.50~5.0mm
Hardness: 25/10 Shore 00 Density: 3.45g/cm³
Dielectric Strength(V/mm): ≥4500 Thermal Conductivity: 13.0W/m-K
Color: Gray Keywords: Ultra-Soft Thermal Pad
Application: EV, 5G And High Density Computing
Highlight:

Ultra-Soft Thermal Pad for EV

,

High Thermal Conductivity Gap Pad

,

Silicone Thermal Pad for 5G

Ultra-Soft Thermal Pad: High Thermal Conductivity Gap Pad for EV, 5G, and High-Density Computing

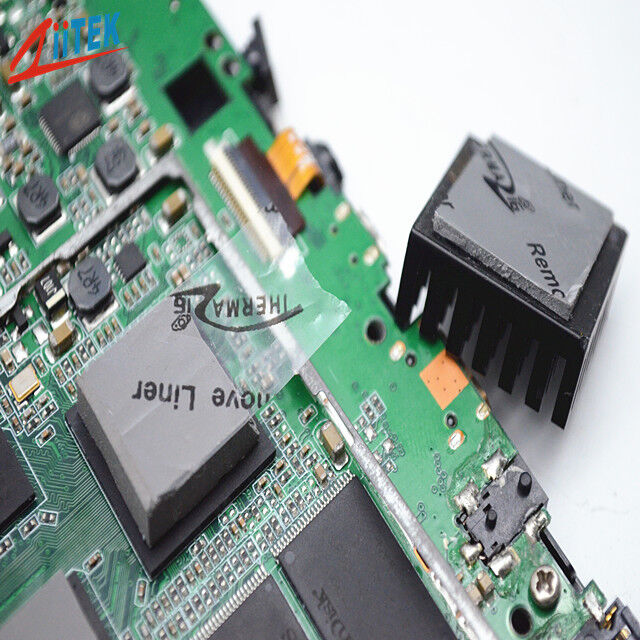

The TIF®800QU Series is an ultra-soft thermal interface material specially designed to protect precision components that are extremely sensitive to mechanical stress. This product combines ultra-high thermal conductivity with extreme gel-like softness, adapting to various uneven heat dissipation interfaces, compensating for assembly tolerances, minimizing air thermal resistance, and efficiently dissipating heat while providing comprehensive protection for chips, sensors, and optoelectronic devices. It is the preferred solution for heat dissipation and protection in precision electronics.

Key Features
  • Good thermal conductivity
  • Excellent softness and fillability
  • Self-adhesive without the need for additional surface adhesive
  • Highly compressible, easy to install and operate
  • Low dielectric constant effectively reduces signal loss
Applications
  • Millimeter wave radar
  • Semiconductor microwave components
  • 5G base station
  • RF power amplifier
  • High performance computing / server memory
  • AI servers
  • Semiconductor packaging
  • Low-altitude aircraft
  • Optical communication products
Typical Properties of TIF®800QU Series
Property Value Test Method
Color Gray Visual
Composition Ceramic filled silicone elastomer ZKTM J024
Density (g/cm³) 3.45 ASTM D792
Thickness Range (inch/mm) 0.020~0.200 / 0.50~5.00 ASTM D374
Hardness (Shore 00) 25/10 ASTM 2240
Recommended Operating Temperature -40 to 200°C ZKTM J025
Breakdown Voltage (V/mm) ≥4500 ASTM D149
Volume Resistivity (Ohm-meter) >1.0×10¹² ASTM D257
Flame Rating V-0 UL 94 (E331100)
Thermal Conductivity (W/m·K) 13.0 ISO 22007
Dielectric Constant @1MHz 7.5 ASTM D150
Product Specification

Standard Thickness: 0.020" (0.50 mm) to 0.200" (5.00 mm), with increments of 0.010" (0.25 mm).

Standard Size: 16" × 16" (406 mm × 406 mm)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Company Profile

Ziitek is a high-tech enterprise dedicated to the R&D, manufacture, and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high-performance thermal products including:

  • Thermal gap pad
  • Thermal graphite sheet / film
  • Thermal double-sided tape
  • Thermal insulation pad
  • Thermal grease
  • Phase change material
  • Thermal gel

All products are compliant with UL94 V-0, SGS, and RoHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Packaging & Lead Time
Packaging Details
  • PET film or foam for protection
  • Paper card to separate each layer
  • Export carton inside and outside
  • Customized packaging available to meet customer requirements
Lead Time

Quantity of 5,000 pieces (estimated time to be negotiated).

TIF 800QU thermal pad product packaging and remark label
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: We are a manufacturer based in China.

Q: How do I find the right thermal conductivity for my application?

A: The appropriate thermal conductivity depends on the wattage of your power source and heat dissipation requirements. Please provide details about your application and power specifications so we can recommend the most suitable thermal conductive materials.

Q: Do you accept custom orders?

A: Yes, we welcome custom orders. Customization options include dimensions, shape, color, and adhesive coating (single or double-sided) or fiberglass coating. To place a custom order, please provide a drawing or detailed specifications.

Q: What is a Thermal Silicone Pad?

A: A thermal silicone pad is a pre-formed TIM typically made of a silicone-based material and thermally conductive fillers. It is designed to fill gaps between heat sources and heat sinks. Depending on the product formulation, thermal silicone pads can also provide electrical insulation.

Q: What are the advantages of Thermal Silicone Pads?

A: Key advantages include easy installation, controlled thickness, good flexibility, and effective gap-filling capability. Depending on the application, thermal silicone pads can also be designed with different levels of thermal conductivity, hardness, flame resistance, and electrical insulation.
