Name: Silicone Foam Gasket With High-performance Applications Requiring Sealing And Vibration Damping For New Energy Vehicle System
Brand: Dongguan Ziitek Electronical Material and Technology Co., Ltd
SKU: Z-Foam800-10EC
Price: 4.10 USD
Availability: InStock

Home Products Silicone Foam Sheet

Silicone Foam Gasket With High-performance Applications Requiring Sealing And Vibration Damping For New Energy Vehicle System

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	ROHS
Model Number:	Z-Foam800-10EC
Document:	Z-FOAM800-10EC_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10USD/pcs
Packaging Details:	241312cm carton
Delivery Time:	3-7 work days
Payment Terms:	T/T
Supply Ability:	10000000pcs/month

Contact Now

Detailed Product Description

Products Name:	Silicone Foam Gasket With High-performance Applications Requiring Sealing And Vibration Damping For New Energy Vehicle System	Keyword:	Silicone Foam Gasket
Application:	New Energy Vehicle System	Color:	Gray
Density(g/m³）:	0.20	Compression Set(%)@100℃:	＜3.0
Compressive Stress (kPa) @25%:	20±3	Tensile Strength(MPa):	≥0.3
Construction:	Silicone Rubber

Silicone Foam Gasket With High-performance Applications Requiring Sealing And Vibration Damping For New Energy Vehicle System

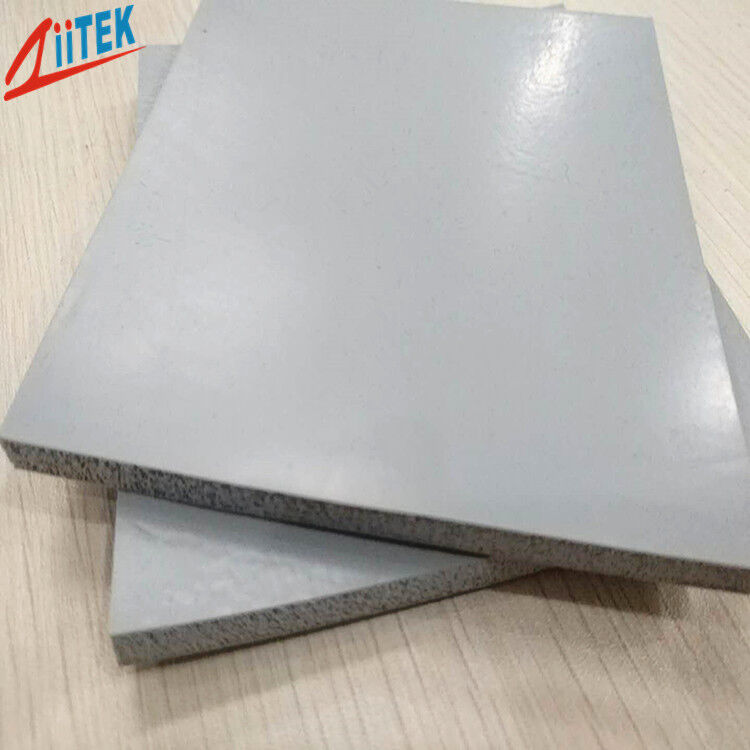

Z-Foam^®800-10EC series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers while possessing the characteristics of foam materials. This includes resistance to high and low temperatures, ultraviolet light, ozone, weatherability, insulation, environmental friendliness, low density, excellent sound absorption, and shock resistance.

Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications including sealing, vibration damping, cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.

Key Features

Resistant to mechanical fatigue
Resistant to ozone and ultraviolet rays
Good insulation properties
Excellent flame retardant performance
Excellent resistance to compression set and creep

Applications

Communication Equipment
Smart Devices
Cables and Optical Fibers
Airplanes, High-Speed Trains, Automobiles
Telecommunication and Electrical Cabinets

Typical Properties of Z-Foam^®800-10EC Series

Properties	Value	Test Method
Color	Gray	Visual
Structure & Component	Silicone rubber	-
Density (g/cm³)	0.20	ASTM D1056
Compressive Stress (kPa) @25%	20±3	ASTM D1056
Compression Set (%) @100℃	<3.0	ASTM D1056
Tensile Strength (MPa)	≥0.3	ASTM D412
Elongation At Break (%)	≥90	ASTM D412
Water Absorption (%)	≤5.0	ASTM D570
Volume Resistivity (Ω*cm)	≥1.0 x 10¹⁵	ASTM D257
Recommended Operating Temperature(℃)	-55~200	-
Flame Rating	V-0	UL94 (E331100)

Standard Sheet Size: 20" x 49" (500mm x 15m)

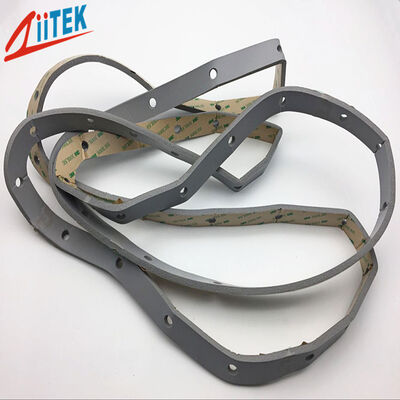

Z-Foam^® Series can be die-cut into different shapes as required. For different thickness options, please contact us.

Why Choose Us?

Our value message is "Do it right the First time, total quality control"
Our core competencies include thermal conductive interface materials
Competitive advantage products
Confidentiality agreement and Business Secret Contract
Free sample offer
Quality assurance contract

Frequently Asked Questions

How do I place an order?

1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.

How do I request customized samples?

To request samples, you can leave us message on website, or just contact us by send email or call us.

What's the thermal conductivity test method given on the data sheet?

All the data in the sheet are actual tested. Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
