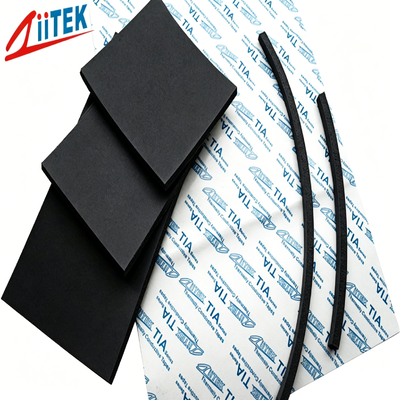

Mechanical Fatigue Resistance Black Silicone Foaming Material For Communication Equipment
Company Profile
Dongguan Ziitek Electronic Material and Technology Co., Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable. Mainly engaged in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. The core explosive heating plate is widely recognized by the market. Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.
Products description

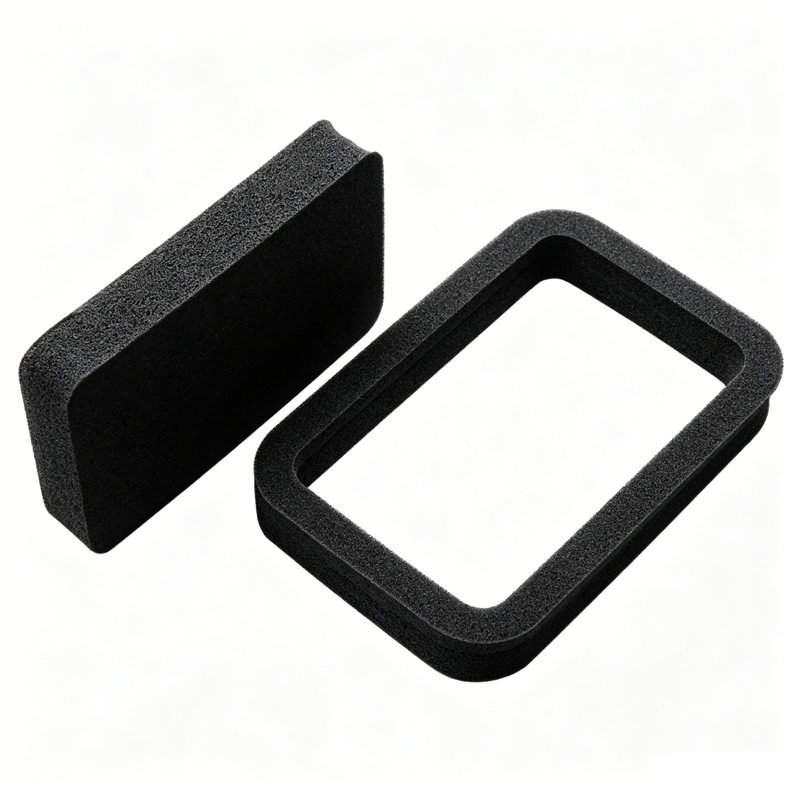

Z-Foam®800-01EK Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weatherability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance,creep resistance,flame retardancy,and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing,vibration damping,cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.
Features
> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> Good insulation properties
> Excellent flame retardancy
> Excellent resistance to compression set and creep
Application
> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-01EK Series |
| Property |
Value |
Test method |
| Color |
Black |
Visual |
| Construction |
Silicone rubber |
- |
| Density (g/cm3) |
0.26 |
ASTM D1056 |
| Compressive Stress (kPa) @25% |
35±10 |
ASTM D1056 |
| Compression Set (%)) @100℃ |
＜5.0 |
ASTM D1056 |
| Tensile Strength (MPa) |
≥0.2 |
ASTM D412 |
| Elongation At Break (%) |
≥80 |
ASTM D412 |
| Water Absorption (%) |
≤5.0 |
ASTM D570 |
| Volume Resistivity (Ω·cm) |
≥1.0 x 1014 |
ASTM D257 |
| Recommended Operating Temperature (℃) |
-55~200 |
- |
| Flame Rating |
V-0 |
UL94 (E331100) |
Standard Sheet Size: 20" x 49"(500mm x 15m)
Z-Foam® Series can be die-cut into different shapes provided.
For more different thickness,please contact us.
