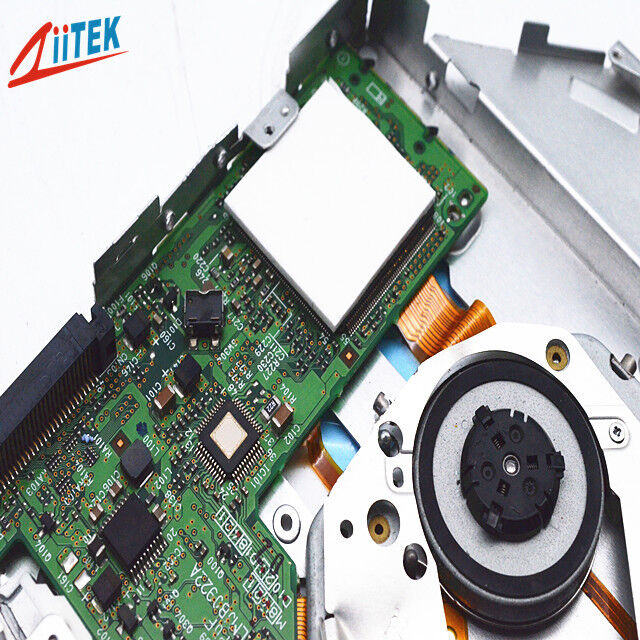

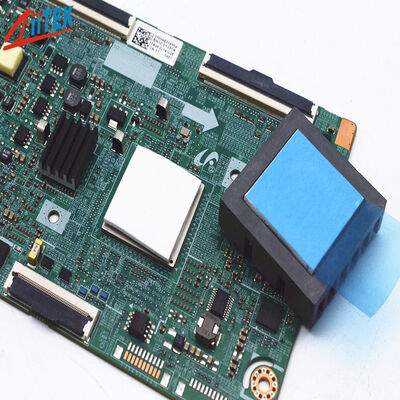

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL and RoHs
Model Number: TIF100-30-06S
Document: TIF100-30-06S_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Products Name: 3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling Thermal Conductive: 3.0W/mK
Hardness: 65/45 Shore 00 Sample: Free Sample
Color: White Thickness: 0.010"~0.200"/(0.25~5.0mm)
Density: 3.0g/cm³ Keywords: Silicone Thermal Pad
Construction: Ceramic Filled Silicone Elastomer Application: AI Processors And Electronics Cooling

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling

Products description


The TIF®100-30-06S Series is awell-balanced,general-purpose thermal pad.It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent suface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.


Features

> Good thermal conductive 3.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Key attributes


Typical Properties of TIF®100-30-06S Series
Property Value Test method
Color White Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness (Shroe 00) 65 45 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant@ 1MHz 5.2 ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007



Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in customshapes and various forms.
For other thicknesses or more information,please contact us.

3.0W/mK Thermally Conductive Silicone Thermal Pad With Good Softness And Fillability For AI Processors And Electronics Cooling 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Gap Filler Offering Superior Softness and Thermal Conductivity to Enhance Cooling and Reliability of Electronic Assemblies 1
