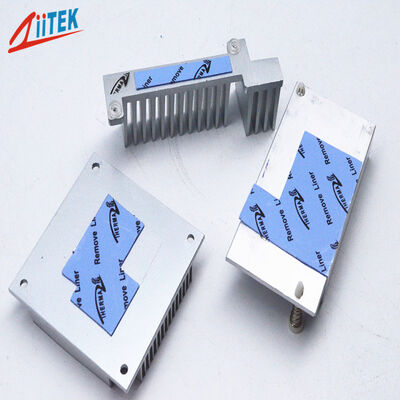

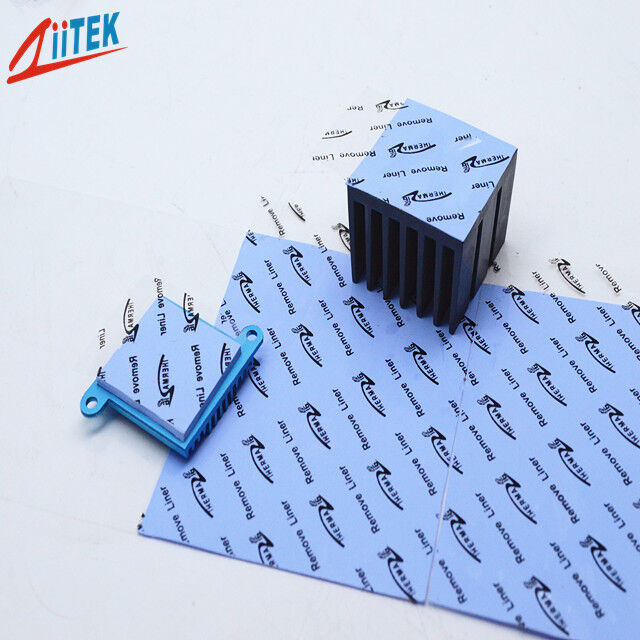

Name: Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-20-05U
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF100-20-05U
Document:	TIF100-20-05U_Data Sheet .pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius	Hardness:	65/27 Shore 00
Keywords:	Thermal Gap Filler	Color:	Blue
Thermal Conductivity:	2.0W/mK	Application:	For Heat Transfer In AI Processors AI Servers
Construction:	Ceramic Filled Silicone Elastomer	Thickness:	0.010~0.200"(0.25~5.0mm)
Sample:	Free

Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet

Operating Temperature Range: -40°C to 200°C

Product Overview

TIF^®100-20-05U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Key Features

Good thermal conductivity
Ultra-soft and highly conformable
Self-adhesive without the need for additional surface adhesive
Good insulation performance
RoHS compliant
UL recognized

Applications

Home appliance industry
Power module
Wearable devices
Solar photovoltaic panels
LED lighting fixtures
Routers
Medical devices
Audio electronic products
Unmanned aerial vehicles (UAV)
Photovoltaic systems
Signal communication
New energy vehicles
Motherboard chip
Radiator
AI Processors & AI Servers

Technical Specifications of TIF^®100-20-05U Series

Property	Value	Test Method
Color	Blue	Visual
Construction	Ceramic filled silicone elastomer	-
Density (g/cm³)	2.9	ASTM D792
Thickness Range (inch/mm)	0.010~0.020 (0.25~0.50) 0.030~0.200 (0.75~5.00)	ASTM D374
Hardness (Shore 00)	65 \| 27	ASTM 2240
Continuous Use Temp	-40 to 200℃	-
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @1MHz	4.9	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Thermal Conductivity (W/m-K)	2.0	ASTM D5470 ISO22007
Fire rating	V-0	UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF^® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Company Advantages

Our value message is "Do it right the First time, total quality control"
Our core competency is thermal conductive interface materials
Competitive advantage products
Confidentiality agreement and Business Secret Contract
Free sample offer
Quality assurance contract

Frequently Asked Questions

Q: Do you accept custom orders?

A: Yes, we welcome custom orders. Our customization options include dimensions, shape, color, and coating on one or both sides with adhesive or fiberglass. To place a custom order, please provide a drawing or detailed specifications.

Q: How do I request customized samples?

A: To request samples, you can leave us a message on our website, or contact us via email or phone.

Q: What's the thermal conductivity test method given on the data sheet?

A: All data in the sheet are actual tested results. Hot Disk and ASTM D5470 methods are utilized to test thermal conductivity.

Tag:

heat conductive pad,

gap filler pad,

thermal cooling pad
