Electric Thermal Pad Silica Gap Filler Thermal Pad Price With Durable Silicone Material For AI Processors

Electric Thermal Pad Silica Gap Filler Thermal Pad Price With Durable Silicone Material For AI Processors

Electric Thermal Pad Silica Gap Filler Thermal Pad Price With Durable Silicone Material For AI Processors
video
Electric Thermal Pad Silica Gap Filler Thermal Pad Price With Durable Silicone Material For AI Processors
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF100-20-10F
Document: TIF100-20-10F_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Products Name: Electric Thermal Pad Silica Gap Filler Thermal Pad Price With Durable Silicone Material For AI Processors Sample: Free
Keywords: Thermal Pad Color: Gray
Construction: Ceramic Filled Silicone Elastomer Thermal Conductivity: 2.0W/mK
Thickness: 0.010~0.200"(0.25~5.0mm) Application: AI Processors AI Servers
Hardness: 65/60 Shore 00
Highlight:

Electric Thermal Pad for AI Processors

,

Durable Silicone Thermal Pad

,

Silica Gap Filler Thermal Pad

Electric Thermal Pad Silica Gap Filler Thermal Pad With Durable Silicone Material For AI Processors
Product Overview

TIF®100-20-10F Series is a structurally supportive thermal pad designed to provide excellent heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat efficiently, and offers mechanical support for stacked components, resisting compressive deformation. This product is ideal for applications requiring a balance between heat dissipation, insulation, and mechanical stability.

Key Features
  • Excellent thermal conductivity
  • Ultra-soft and highly conformable
  • Self-adhesive without additional surface adhesive
  • Available in various thicknesses
  • Broad range of hardness options
Applications
  • Audio electronic products
  • Unmanned aerial vehicles (UAV)
  • Photovoltaic systems
  • Signal communication
  • New energy vehicles
  • Motherboard chips
  • Radiators
  • AI Processors & AI Servers
  • Micro heat pipe thermal solutions
  • Automotive engine control units
  • Telecommunication hardware
Technical Specifications - TIF®100-20-10F Series
Property Value Test Method
Color Gray Visual
Construction Ceramic filled silicone elastomer ******
Density (g/cm³) 2.8 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 (0.25~0.50)
0.030~0.200 (0.75~5.00)		 ASTM D374
Hardness (Shore 00) 65 | 60 ASTM 2240
Continuous Use Temp -40 to 200℃ ***
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 4.7 ASTM D150
Volume Resistivity ＞1.0×10¹² Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 2.0 ASTM D5470
ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

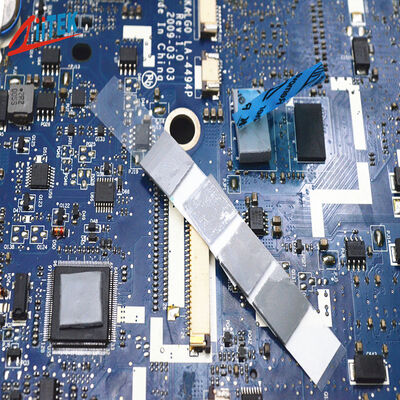

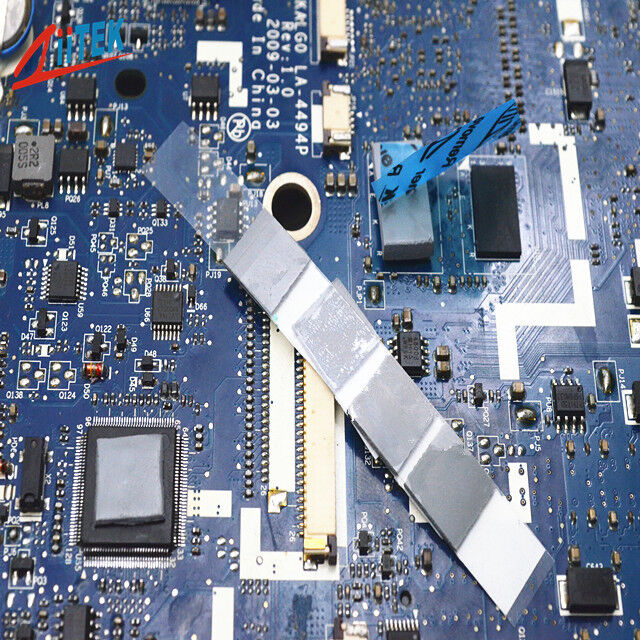

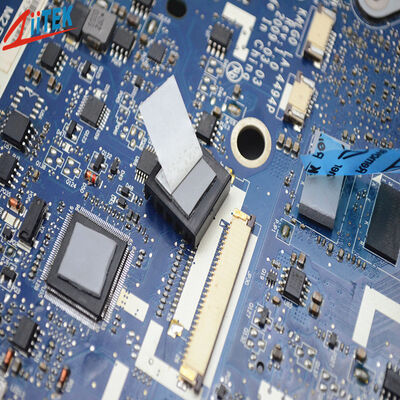

TIF®100-20-10F Series Thermal Pad Product Image
Ziitek Culture
Quality

Do it right the first time, total quality control

Effectiveness

Work precisely and thoroughly for effectiveness

Service

Quick response, On time delivery and Excellent service

Team Work

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Frequently Asked Questions
Do you accept custom orders?
Yes, we welcome custom orders. Our customization options include dimensions, shape, color, and coating on one or both sides with adhesive or fiberglass. To place a custom order, please provide a drawing or detailed specifications.
How do I request customized samples?
To request samples, you can leave us a message on our website, or contact us via email or phone.
What's the thermal conductivity test method given on the data sheet?
All data in the sheet are actual tested results. Hot Disk and ASTM D5470 methods are utilized to test thermal conductivity.
