Flexible Thermal Gap Filler For In Filling Air Gaps Between Heating Elements And Heat Dissipation Fins To Enhance Cooling Efficiency

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-18-02S
Document:	TIF100-16-38UF_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Flexible Thermal Gap Filler For In Filling Air Gaps Between Heating Elements And Heat Dissipation Fins To Enhance Cooling Efficiency	Keywords:	Thermal Gap Filler
Thinkness Range:	0.010"(0.25mm)~0.200" (5.0mm)	Sample:	Sample Avaliable
Flam Rating:	94 V0	Hardness:	65/45 Shore 00
Thermal Conductivity:	1.8W/mK	Color:	Gray White
Certification:	RoHS And UL Recognized	Application:	To Enhance Cooling Efficiency

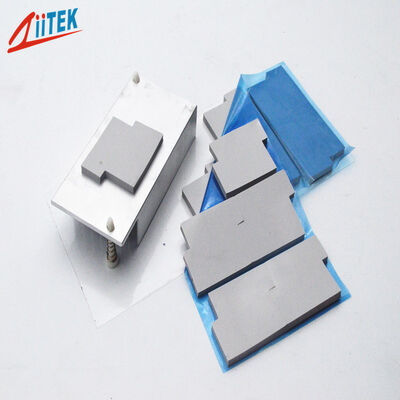

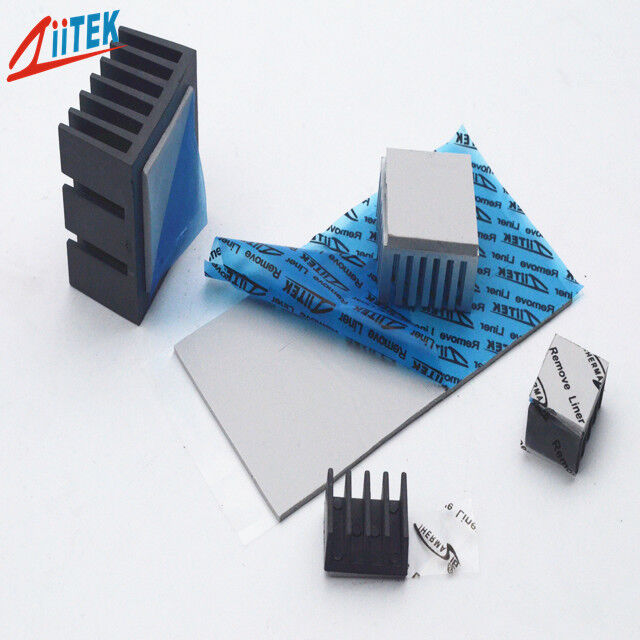

Flexible Thermal Gap Filler For In Filling Air Gaps Between Heating Elements And Heat Dissipation Fins To Enhance Cooling Efficiency

TIF^®100-18-02S Series is a well-balanced, general-purpose thermal pad that offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Key Features

Excellent thermal conductivity: 1.8W/mK
Soft and compressible for low stress applications
High tack surface reduces contact resistance
Outstanding thermal performance
RoHS compliant
UL recognized

Applications

LED floor light
Routers
Medical Devices
Audio electronic products
Unmanned aerial vehicle (UAV)
Photovoltaic
Signal communication
New energy vehicle motherboard chip
Radiator
AI Processors & AI Servers

Technical Specifications - TIF^®100-18-02S Series

Property	Value	Test Method
Color	Gray White	Visual
Construction	Ceramic filled silicone elastomer	-
Density (g/cm³)	2.65	ASTM D792
Thickness Range	0.010"~0.020" \| 0.030"~0.200" 0.25~0.50mm \| 0.75~5.0mm	ASTM D374
Hardness (Shore 00)	65 \| 45	ASTM 2240
Operating Temperature	-40 to 200℃	-
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	4.5	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	1.8 W/m-K	ASTM D5470 / ISO22007

Product Dimensions

Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010 (0.25mm).

Product Sizes: 16" x 16" (406mm x 406mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF^® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging & Lead Time

Packaging: Protected with PET film or foam, paper card separation between layers, export carton packaging, customizable to customer requirements.

Lead Time: For quantities of 5000 pieces, delivery time is negotiable.
