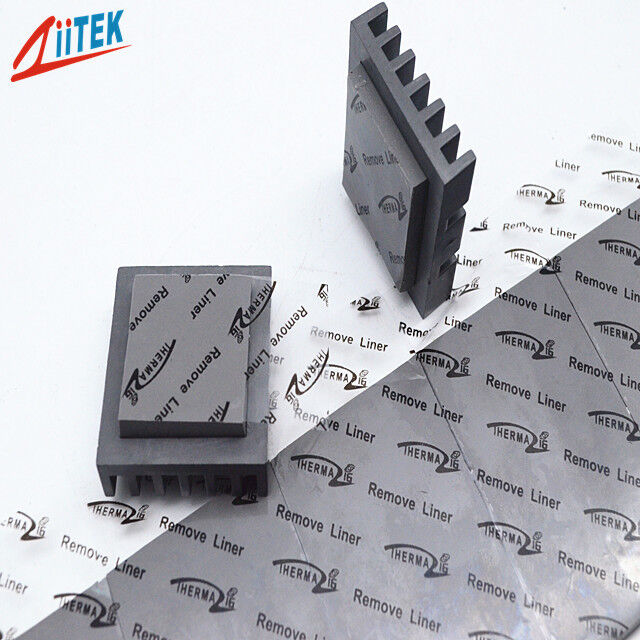

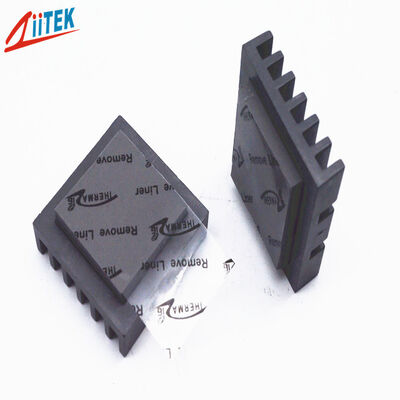

RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For Solar Photovoltaic Panel

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-18-11U
Document:	TIF100-18-11U_Data Sheet .pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	RoHS Ompliant Custom Thickness And Shape Extremely Soft Thermal Pads For Solar Photovoltaic Panel	Keywords:	Thermal Pads
Sample:	Sample Free	Fire Rating:	94 V0
Color:	Dark Gray	Thermal Conductivity:	1.8W/m-K
Dielectric Constant@1MHz:	4.5	Breakdown Voltage（V/mm)）:	≥5500
Thickness Range:	0.010"~0.200"(0.25mm~5.0mm)	Application:	Solar Photovoltaic Panel

RoHS Compliant Custom Thickness and Shape Extremely Soft Thermal Pads for Solar Photovoltaic Panel

TIF^®100-18-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Key Features

Good thermal conductivity: 5.0W/mK
Moldability for complex parts
Soft and compressible for low stress applications
High tack surface reduces contact resistance
RoHS compliant
UL recognized

Applications

Computer / communication equipment
Laptop / tablet / PC server
New energy power battery / vehicle equipment
Switching power supply / UPS
Solar photovoltaic panel
Motherboard chip
Radiator
AI Processors AI Servers
Home appliance industry
Power module
Wearable device
LED lighting fixtures

Technical Specifications of TIF^®100-18-11U Series

Property	Value	Test Method
Color	Dark gray	Visual
Construction & Composition	Ceramic filled silicone elastomer	-
Density (g/cm³)	2.5	ASTM D792
Thickness Range (inch/mm)	0.010~0.020 \| 0.030~0.200 0.25~0.50 \| 0.75~5.00	ASTM D374
Hardness (Shore 00)	65 \| 27	ASTM 2240
Continuous Use Temp	-40 to 200℃	-
Breakdown Voltage (V/mm)	≥ 5500	ASTM D149
Dielectric Constant@1MHz	4.5	ASTM D150
Volume Resistivity(Ohm-meter)	＞1.0×10¹²	ASTM D257
Thermal Conductivity (W/m-K)	1.8	ASTM D5470 / ISO22007
Fire Rating	V-0	UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF^® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging & Lead Time

Packaging Details:

PET film or foam for protection
Paper card to separate each layer
Export carton inside and outside
Customized to meet customer requirements

Lead Time: Quantity: 5000 pieces - To be negotiated

Frequently Asked Questions

Q: Are you a trading company or manufacturer?
A: We are manufacturer in China.
Q: What thermal conductivity test method was used?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Most thermal gap pad surfaces have double side natural inherent tack. Non-stick surface can also be treated according to customer's requirements.
Q: How do I place an order?
A: Click the "Send messages" button, fill out the form with your questions and purchase requests, and we will reply as soon as possible via email or online.

About Ziitek

Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste, thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel, silicone foam, silicone-free thermal pads etc. We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
