| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF100-01US |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Products Name: | High Quality Heat Insulation Silicone CPU Thermal Pad With Different Thickness | Thermal Conductivity: | 1.5 W/mK |
|---|---|---|---|
| Keywords: | CPU Thermal Pads | Color: | Drak Gray |
| Hardness: | 20±5 Shore 00 | Material: | Ceramic Filled Silicon Elastomer |
| Specific Gravity: | 1.9g/cm³ | ||
| Highlight: | Ultra Soft CPU Thermal Pad,CPU Thermal Pad 20 Shore 00,5.0mmT cpu cooling pad |
||

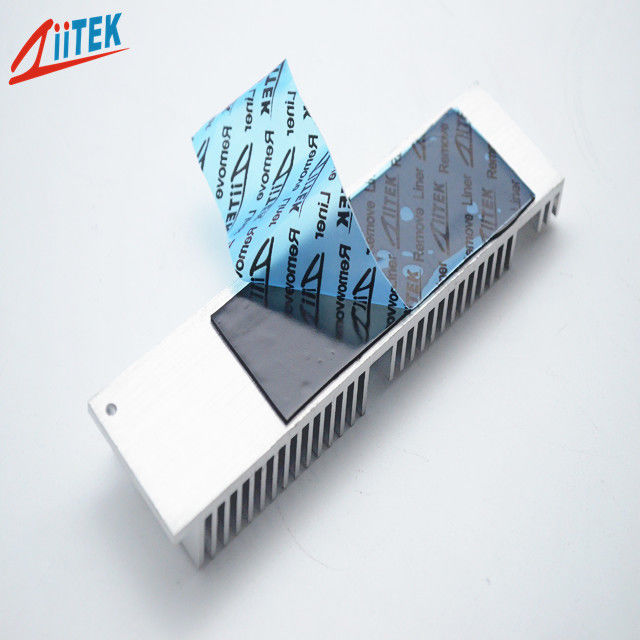

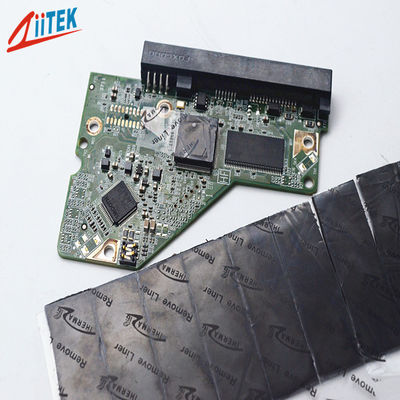

High Quality Heat Insulation Silicone CPU thermal pad with different thickness
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Product introduction
|
Typical Properties of TIF 100-01US
|
|||
|
Product Name
|
TIF100-01US Series
|
||
|
Color
|
Drak Gray | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific Gravity
|
1.9g/cc
|
||
|
Hardness
|
20±5 Shore 00
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage(T=1.0mm,Vac)
|
≥5500 VAC
|
||
| Dielectric constant @1MHz | 2.9 | ||
| Volume Resistivity | ≥1.0x10¹²Ohm-cm | ||
|
Thermal conductivity
|
1.5 W/mK
|
||
|
Thickness
|
0.25mm to 5.0mmT | ||
| Flame Rating | 94-V0 | ||
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
