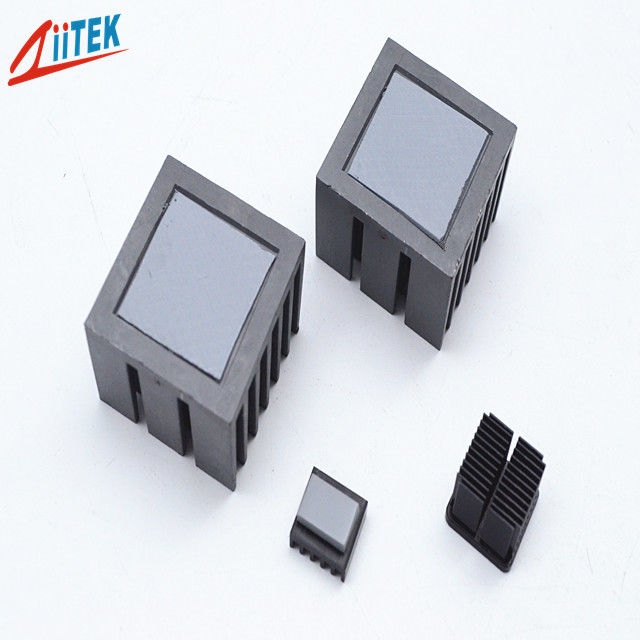

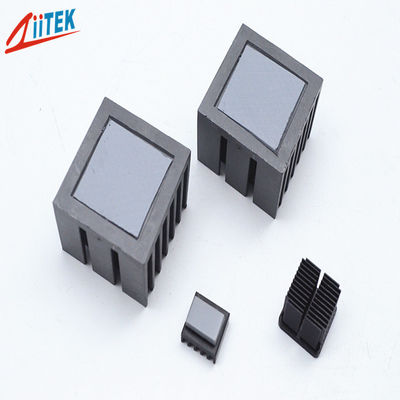

High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad

High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad

High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad
video
High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF140-02E Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad Thickness: 1.0mmT
Specific Gravity: 2.3 G/cc Dielectric Breakdown Voltage: >5500 VAC
Thermal Conductivity: 1.5W/m-K Color: Gray
Keywords: Silicone Thermal Pad Application: LED CPU GPU VGA
Sample: Sample Available
Highlight:

1.0mmT Silicon Thermal Pad

,

Portable Electronics Silicon Thermal Pad

,

1.5w/mk thermally conductive silicone sheet

High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad



The TIF140-02E Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features


> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> Easy release construction
> Electrically isolating
> High durability




Applications


> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> Semiconductor automated test equipment (ATE)
> CPU
> Memory Modules
> routers
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure



Typical Properties of TIF140-02E Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density 2.3g/cc ASTM D297
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ******
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity(Ohm-cm) 1.0X1012 ASTM D257
Fire rating 94 V0 UL equivalent
Thermal conductivity 1.5W/m-K ASTM D5470

Products Sizes:
8" x 16"(203mm x 406mm)
Individual die cut shapes and custome thickness can be supplied.



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.

High Quality 1.5W/M.K LED CPU GPU VGA Gray Silicone Thermal Conductive Pad 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
