Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application

Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF100-10E Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application Thickness: 3.0mmT
Specific Gravity: 2.3g/cc Dielectric Breakdown Voltage: >5500 VAC
Thermal Conductivity: 1.5W/m-K Color: Gray
Keywords: Silicone Thermal Pad Sample: Sample Free
Application: High Temperature Application
Highlight:

Thermal Conductive Silicone Pad 3.0mmT

,

White Thermal Conductive Silicone Pad

,

GPS Navigation Device Silicone Thermal Pad

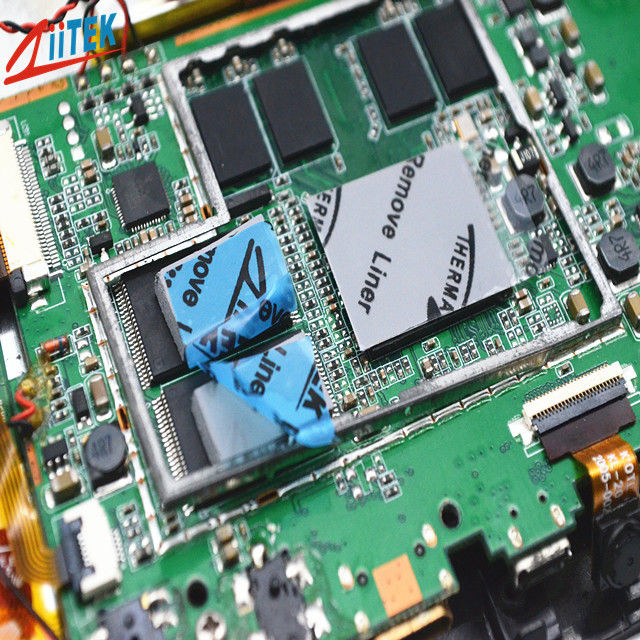

Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application


The TIF100-10E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.


Features
>  Good thermal conductive: 1.5W/mK
>  Available in varies thickness
>  UL & ROHS recognized
>  Broad range of hardnesses available
>  High tack surface reduces contact resistance

>  Electrically isolating

>  Easy release construction


Applications
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply

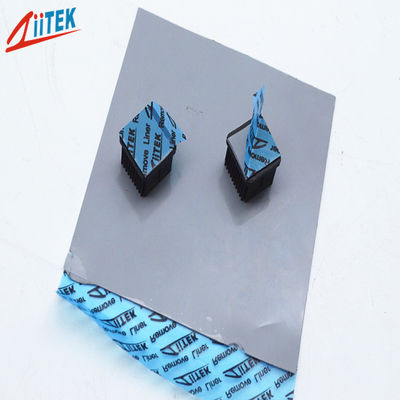

Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application



Typical Properties of TIF100-10E Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *****
Specific gravity 2.3g/cc ASTM D297
Thickness 0.020"(0.5mm)~0.200"(5.0mm) *****
Hardness 35 Shore 00 ASTM 2240
Outgasing (TML) 0.35% ASTM E595
Continuos Use Temp -45 to 200℃ ***
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity(Ohm-cm) 2.0X1012 ASTM D257
Fire rating 94 V0 UL equivalent
Thermal conductivity 1.5W/m-K ASTM D5470



Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.





Products Sizes

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplier.

Please contact us for confirming.



Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL





Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
