Name: Factory Price Hot Selling Thermal Conductive Silicon Pad 8W/MK Silicone Thermal Gap Filling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF700Q Series
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Factory Price Hot Selling Thermal Conductive Silicon Pad 8W/MK Silicone Thermal Gap Filling

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF700Q Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Features:	Good Thermal Conductive	Products Name:	Factory Price Hot Selling Thermal Conductive Silicon Pad 8W/MK Silicone Thermal Gap Filling
Keywords:	Thermal Conductive Silicon Pad	Standard Size:	203mm*406mm
Thermal Conductivity:	8.0 W/mK	Hardness:	60±10 Shore 00
Recognized:	UL ROHS	Flame Rating:	UL94 V0
Specific Gravity:	3.55g/cc
Highlight:	8W/MK Silicone Thermal Pad , UL94 V0 Thermal Conductive Silicone Pad , Silicone Thermal Pad For Power Supply

Factory Price Hot Selling Thermal Conductive Silicon Pad 8W/MK Silicone Thermal Gap Filling

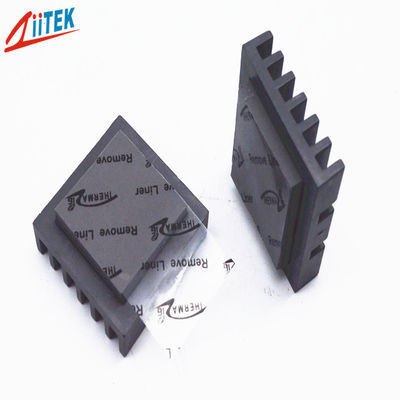

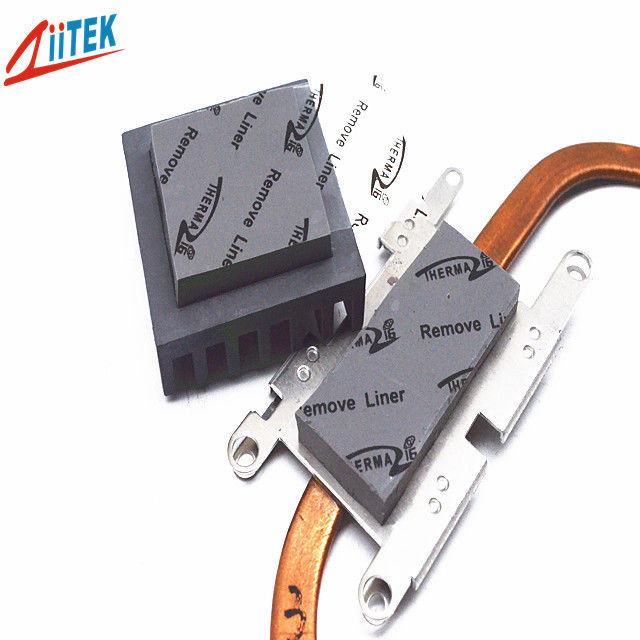

Ziitek TIF700Q use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction
> Electrically isolating
> High durability

Applications

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure

Typical Properties of TIF700Q Series
Property	Value	Test method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.50mm)~0.20"(5.0mm)	ASTM D374
Hardness	60±10 Shore 00	ASTM 2240
Specific Gravity	3.55g/cc	ASTM D792
Continuos Use Temp	-45 to 200℃	***
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	4.5 MHz	ASTM D150
Volume Resistivity	5.2X10¹³ Ohm-meter	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	8.0 W/m-K	ASTM D5470

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplied.

Factory Price Hot Selling Thermal Conductive Silicon Pad 8W/MK Silicone Thermal Gap Filling 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
