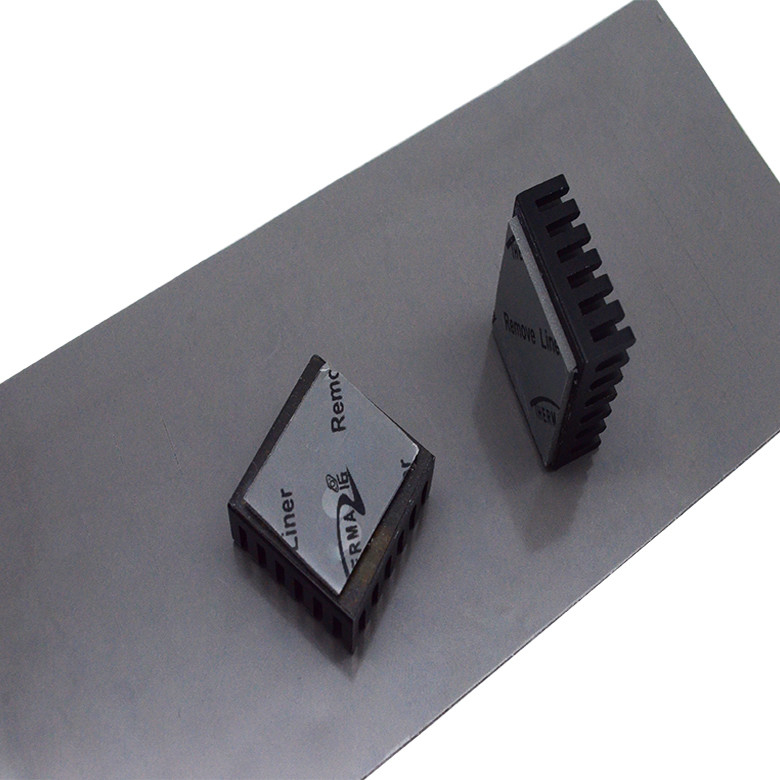

High performance low cost CPU thermal pad TIF500-30-11U with grey color for various electronic device

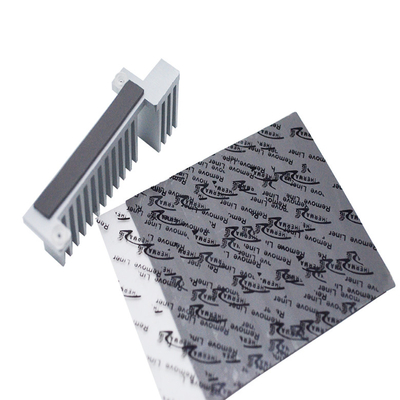

High performance low cost CPU thermal pad TIF500-30-11U with grey color for various electronic device

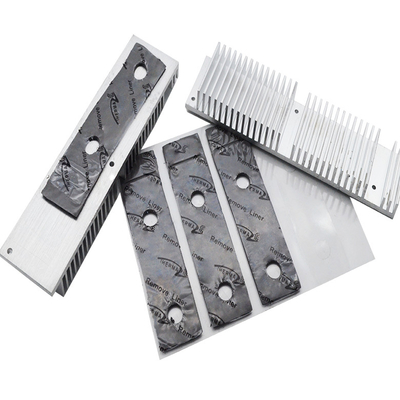

High performance low cost CPU thermal pad TIF500-30-11U with grey color for various electronic device
video
High performance low cost CPU thermal pad TIF500-30-11U with grey color for various electronic device
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF500-30-11U thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 27shore00 KEYWORD: Grey Silicone Rubber Pads
Color: Grey Part Number: TIF500-30-11U
Material: Silicone Thickness: 0.5mmT
Highlight:

High Performance CPU Thermal Pad

,

Electronic CPU Thermal Pad

,

Grey Mosfet Thermal Pad

High performance low cost CPU thermal pad TIF500-30-11U with grey color for various electronic device



Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.


The TIF™500-30-11U  is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

Broad range of hardnesses available 3.0W/mK
Electrically isolating
Outstanding thermal performance




Applications

Mass storage devices
Broad range of hardnesses available
Handheld portable electronics
Audio and video components
Handheld portable electronics
GPS navigation and other portable devices
CD-Rom, DVD-Rom cooling





Typical Properties of TIF 500-30-11U

Product Name
TIF500-30-11U Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.0g/cc
Dielectric Constant@1MHz
4.4 MHz
Hardness
27Shore 00
Flame Rating
94 -V0
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Thickness
0.5mm to 5.0mmT



Standard Thicknesses:
0.010" (0.25mm)  0.020" (0.51mm)  0.030" (0.76mm)  0.040" (1.02mm)  0.050" (1.27mm)  0.060" (1.52mm)      0.070" (1.78mm)  0.080" (2.03mm)  0.090" (2.29mm)  0.100" (2.54mm)  0.110" (2.79mm)  0.120" (3.05mm)      0.130" (3.30mm)  0.140"  (3.56mm) 0.150" (3.81mm)  0.160" (4.06mm)  0.170" (4.32mm)  0.180" (4.57mm)     0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.


High performance low cost CPU thermal pad TIF500-30-11U with grey color for various electronic device 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.


TIF500-30-11U Datasheet-REV02.pdf
