| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF500S thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 45shore00 | KEYWORD: | Blue Silicone Rubber Pads |
|---|---|---|---|
| Color: | Blue | Part Number: | TIF500S |
| Material: | Silicone | ||
| High Light: | Blue Silicone Cooling Pad,45 Shore00 CPU Thermal Pad,Electronic CPU Thermal Pad |
||

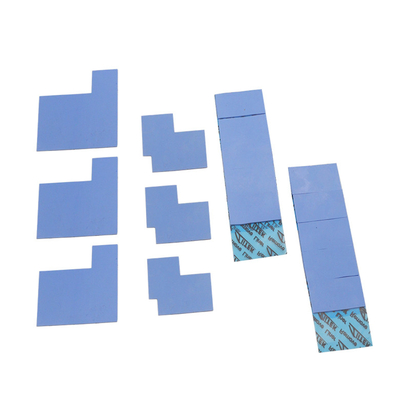

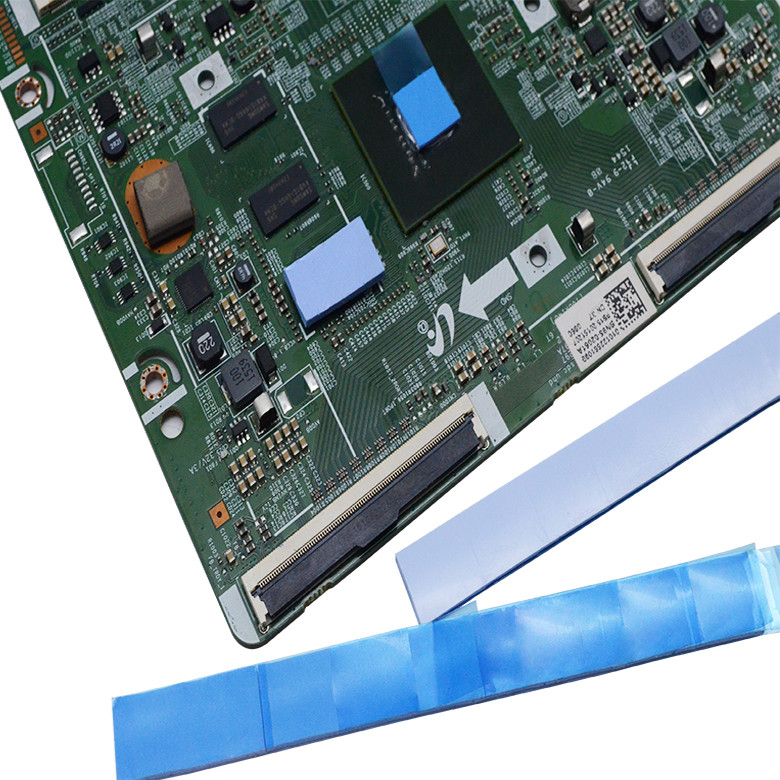

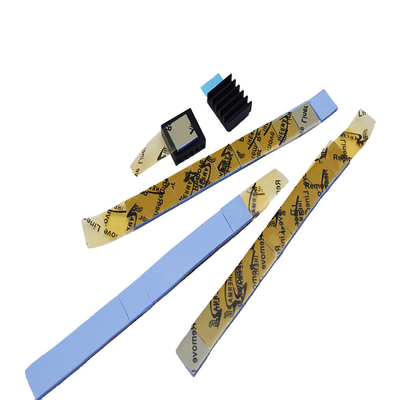

High performance low cost CPU thermal pad TIF500S with blue color for various electronic device
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
| Broad range of hardnesses available 3.2 W/mK |
| Electrically isolating |
| Outstanding thermal performance |
| Mass storage devices |
| Broad range of hardnesses available |
| Handheld portable electronics |
| Audio and video components |
| Handheld portable electronics |
| GPS navigation and other portable devices |
| CD-Rom, DVD-Rom cooling |
|
Typical Properties of TIF 500S
|
|||
|
Product Name
|
TIF500S Series
|
||
|
Colour
|
Blue | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
3.0g/cc
|
||
|
Heat Capacity
|
1 l/g-K
|
||
|
Hardness
|
45 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
3.2 W/mK
|
||
|
Thickness
|
0.50mm to 5.0mmT | ||
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
| Q: How do I request customized samples? | ||||||||||||
| A: To request samples, you can leave us message on website, or just contact us by send email or call us. |
Contact Person: Miss. Dana
Tel: +86 18153789196
