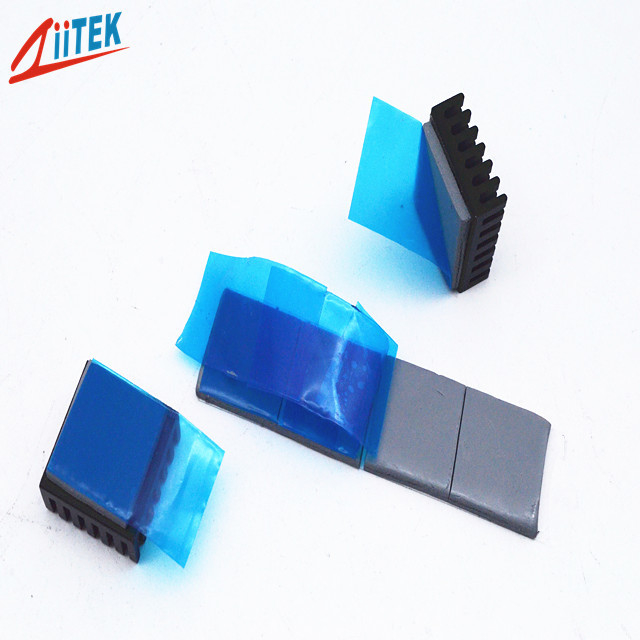

94 V0 LED TV 3.0W/MK CPU Thermal Pad TIF580-30-11US 1.5mmT RoHS Compliant For LED Light

94 V0 LED TV 3.0W/MK CPU Thermal Pad TIF580-30-11US 1.5mmT RoHS Compliant For LED Light

94 V0 LED TV 3.0W/MK CPU Thermal Pad TIF580-30-11US 1.5mmT RoHS Compliant For LED Light
video
94 V0 LED TV 3.0W/MK CPU Thermal Pad TIF580-30-11US 1.5mmT RoHS Compliant For LED Light
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIFT580-30-11US CPU Thermal Pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 20shore00 KEYWORD: Gray Silicone Rubber Pads
Color: Gray Part Number: TIFT580-30-11US
Material: Silicone Construction: Ceramic Filled Silicone Elastomer
High Light:

CPU Thermal Pad TIF580-30-11US

,

3.0W/MK CPU Thermal Pad

,

CPU Thermal Pad 20shore00

New type High durability 94 V0 LED TV 3.0W/MK CPU Thermal Pad TIF580-30-11US 1.5mmT RoHS compliant for LED light



Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.



TIF500-30-11US Datasheet-REV02.pdf

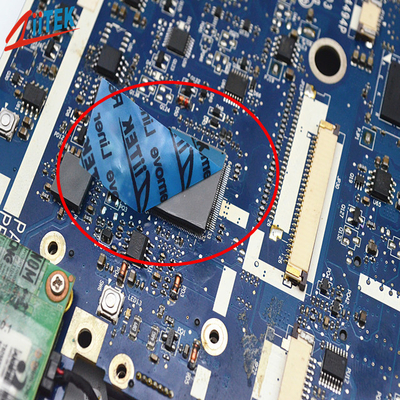

TIF580-30-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.

Features

Broad range of hardnesses available 3.0 W/mK
Electrically isolating

Outstanding thermal performance



Thickness:2.0mmT




Applications

Mass storage devices
Broad range of hardnesses available
Handheld portable electronics
Audio and video components
Handheld portable electronics
GPS navigation and other portable devices
CD-Rom, DVD-Rom cooling





Typical Properties of TIF580-30-11US

Product Name
 TIF580-30-11US Series
Colour
Gray
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
2.9 g/cc
Operating Temp
-40 ~160 ℃
Hardness
20Shore 00
Dielectric Breakdown Voltage
 >5500 VAC
Flame Rating
94 -V0
Dielectric Constant@1MHz
4.0 MHz
Thermal conductivity
 3.0W/mK
Thickness
2.0 mmT



Standard Thicknesses:
0.010" (0.25mm)  0.020" (0.51mm)  0.030" (0.76mm)  0.040" (1.02mm)  0.050" (1.27mm)  0.060" (1.52mm)      0.070" (1.78mm)  0.080" (2.03mm)  0.090" (2.29mm)  0.100" (2.54mm)  0.110" (2.79mm)  0.120" (3.05mm)      0.130" (3.30mm)  0.140"  (3.56mm) 0.150" (3.81mm)  0.160" (4.06mm)  0.170" (4.32mm)  0.180" (4.57mm)     0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.


94 V0 LED TV 3.0W/MK CPU Thermal Pad TIF580-30-11US 1.5mmT RoHS Compliant For LED Light 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
