| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF5180-50-11S thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 45shore00 | KEYWORD: | Grey Silicone Rubber Pads |
|---|---|---|---|
| Color: | Grey | Part Number: | TIF5180-50-11S |
| Material: | Silicone | Pecific Gravity: | 3.15 G/cc |
| Highlight: | 45 shore 00 thermal pad,TIF5180-50-11S Thermal Pad,4.5mm Mainboard Thermal Pad |
||

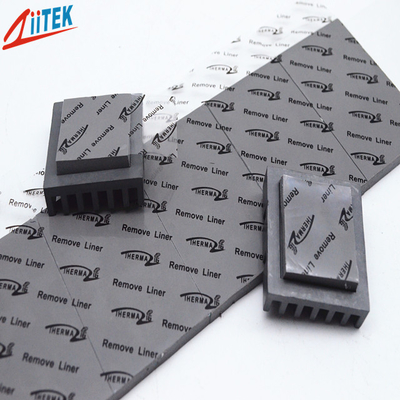

4.5mm mainboard/mother board Applicated Soft thermal conductive gap pad 5.0W/M-K 45shore00
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF500-50-11S Datasheet-REV02.pdf

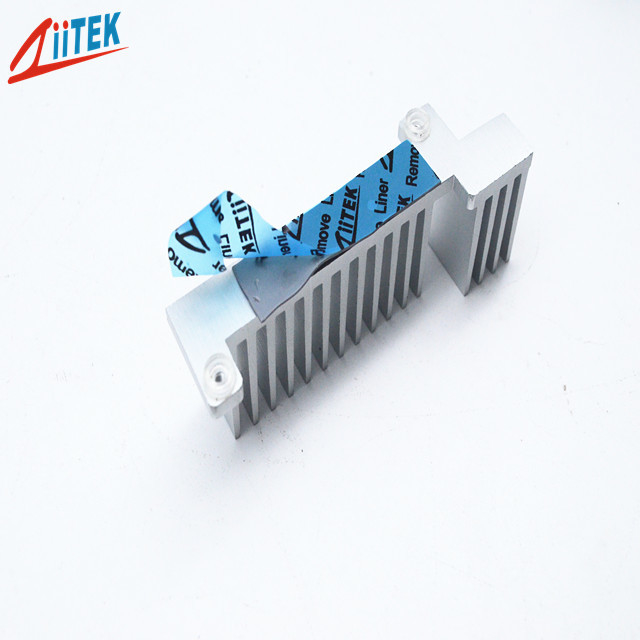

TIF5180-50-11S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.
| Broad range of hardnesses available 5.0 W/mK |
| Electrically isolating |
| Outstanding thermal performance |
|
Thickness:4.5mmT |
| Good thermal conductive |
| Easy release construction |
| Moldability for complex parts |
| Mass storage devices |
| mainboard/mother board |
| Broad range of hardnesses available |
| Semiconductor automated test equipment (ATE) |
| Audio and video components |
| Handheld portable electronics |
| GPS navigation and other portable devices |
| CD-Rom, DVD-Rom cooling |
| Telecommunication hardware |
| LED Power Supply |
| IT infrastructure |
|
Typical Properties of TIF5180-50-11S
|
|||
|
Product Name
|
TIF5180-50-11S Series
|
||
|
Colour
|
Grey | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
3.15 g/cc
|
||
|
Dielectric Constant@1MHz
|
4.0 MHz | ||
|
Hardness
|
45Shore 00
|
||
|
Flame Rating
|
94 -V0
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
5.0W/mK
|
||
|
Thickness
|
4.5mm | ||
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Packaging Details & Lead time
The packaging of thermal pad
1. with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
