| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF520-50-11US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 20shore00 | KEYWORD: | Grey Silicone Rubber Pads |
|---|---|---|---|
| Color: | Grey | Part Number: | TIF520-50-11US |
| Material: | Silicone | Thermal Conductive: | 5.0W/m-k |
| High Light: | UL Recognized Silicone CPU Pads,0.5mmT Silicone Pads,UL Recognized Silicone Thermal Pads |
||

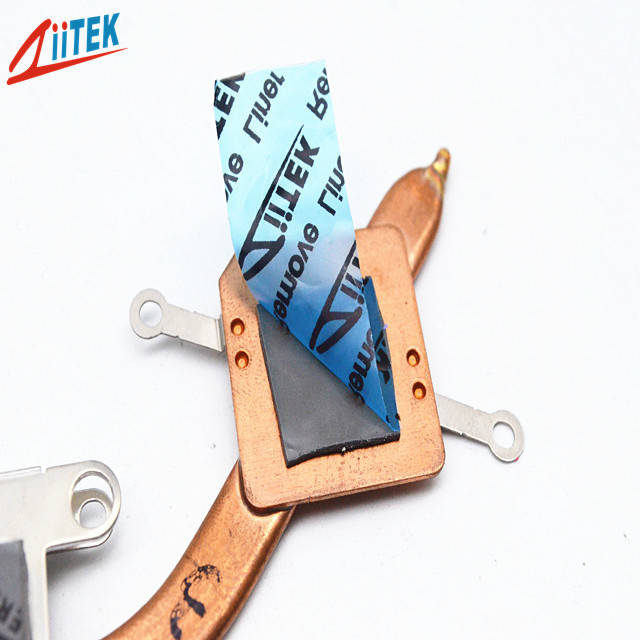

UL recognized 0.5mmT silicone pads TIF520-50-11US with grey color for various electronic device
Ziitek TIF520-50-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF520-50-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
TIF500-50-11US Datasheet-REV02.pdf
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
<Good thermal conductive:5.0W/m-k
<Thickness:0.5mmT
<Naturally tacky needing no further adhesive coating
<Outstanding thermal performance
<Easy release construction
<mainboard/mother board
<notebook
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
|
Typical Properties of TIF 520-50-11US
|
|||
|
Product Name
|
TIF520-50-11US Series
|
||
|
Colour
|
Grey | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
3.0g/cc
|
||
|
Dielectric Constant@1MHz
|
4.0 MHz
|
||
|
Hardness
|
20 Shore 00
|
||
|
Flame Rating
|
94 -V0
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
5.0 W/mK
|
||
|
Thickness
|
0.5mmT | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FACTORY INFORMATION:
Factory Size
5,000-10,000 square meters
Factory Country/Region
Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China
Annual Output Value
US$1 Million - US$2.5 Million
