| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF5180-50-11US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 20shore00 | KEYWORD: | Grey Silicone Rubber Pads |
|---|---|---|---|
| Color: | Grey | Part Number: | TIF5180-50-11US |
| Material: | Silicone | Thermal Conductive: | 5.0W/m-k |
| High Light: | Grey Thermally Conductive Pad,RoHS Compliant Thermally Conductive Pad,4.5mmT Thermally Conductive Pad |
||

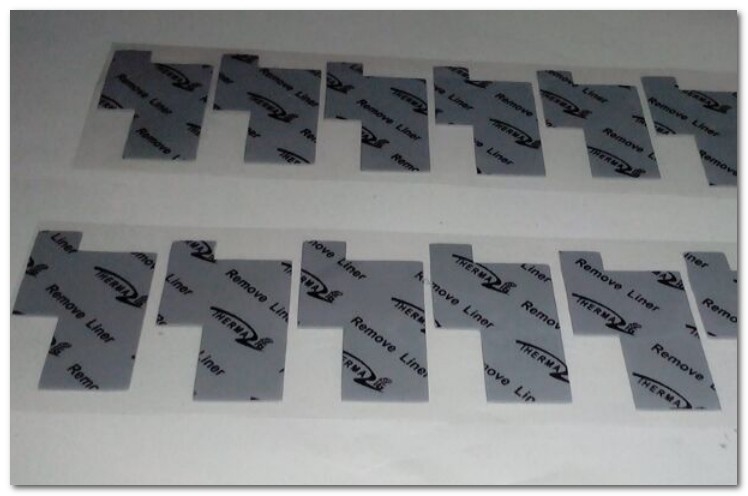

4.5mmT RoHS compliant thermally conductive silicone rubber, ultra soft 20shore00 For Handheld portable electronics
Ziitek TIF5180-50-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF5180-50-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
TIF500-50-11US Datasheet-REV02.pdf
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
<Good thermal conductive:5.0W/m-k
<Thickness:4.5mmT
<UL recognized
<RoHS compliant
<Electrically isolating
<High speed mass storage drives
<Telecommunication hardware
<Handheld portable electronics
<Set top boxes
<Audio and video components
|
Typical Properties of TIF 5180-50-11US
|
|||
|
Product Name
|
TIF5180-50-11US Series
|
||
|
Colour
|
Grey | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
3.0g/cc
|
||
|
Dielectric Constant@1MHz
|
4.0 MHz
|
||
|
Hardness
|
20 Shore 00
|
||
|
Flame Rating
|
94 -V0
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
5.0 W/mK
|
||
|
Thickness
|
4.5mmT | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
