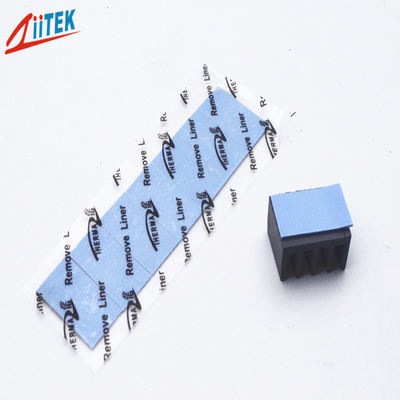

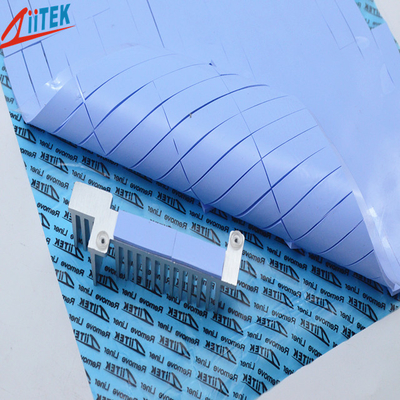

-40 To 160℃ Blue Silicone Pads 1.2W/M-K For LED Ceiling Lamp

-40 To 160℃ Blue Silicone Pads 1.2W/M-K For LED Ceiling Lamp

-40 To 160℃ Blue Silicone Pads 1.2W/M-K For LED Ceiling Lamp
video
-40 To 160℃ Blue Silicone Pads 1.2W/M-K For LED Ceiling Lamp
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF140-12-05ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 12±5 Shore00 KEYWORD: Blue Silicone Rubber Pads
Color: Blue Part Number: TIF140-12-05ES
Material: Silicone Thickness: 1.0mmT
High Light:

Blue Thermal Silicone Pad

,

1.2W/M-K Thermal Silicone Pad

,

Silicone Pads For LED Ceiling Lamp

Continuos Use Temp:-40to 160℃,blue silicone pads 1.2W/M-K For LED Ceilinglamp



Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



TIF100-12-05ES-Series-Datasheet.pdf

The TIF140-12-05ES is a highly compliant Gap Pad material that is ideal for fragile component leads. The material is fiberglass reinforced for improved puncture resistance and handling TIF140-12-05ES maintains a conformable, yet elastic nature that provides excellent interfacing and wet-out characteristics, even to surfaces with high roughness or uneven topography. TIF140-12-05ES features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configurationStandard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request

Features
<Good thermal conductive:1.2 W/mK
<Thickness:1.0mmT
<Hardness:12±5  Shore 00

<RoHS compliant

<UL recognized

<Fiberglass reinforced for puncture, shear and tear resistance



Applications

<LED Ceilinglamp

<Monitoring the Power Box

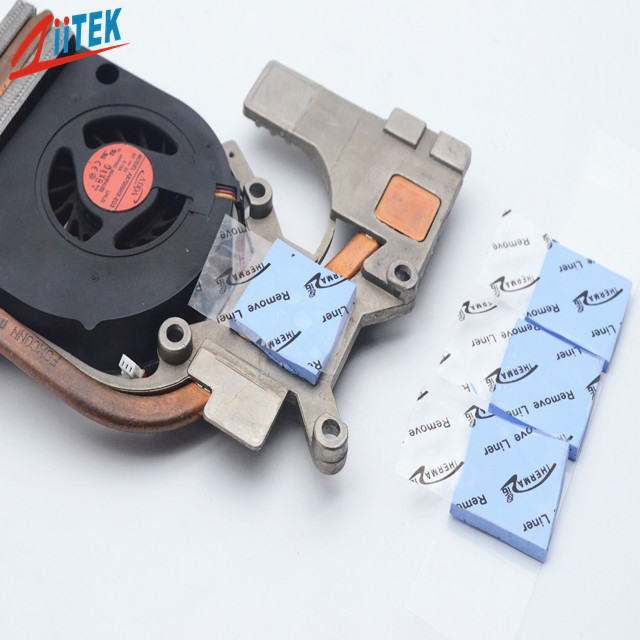

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices





Typical Properties of TIF140-12-05ES

Product Name
TIF140-12-05ES Series
Colour
Blue
Construction & Compostion
Ceramic filled silicone rubber

Density

2.0 g/cm3

Thickness

1.0mmT
Hardness
12±5  Shore 00
Tensile Strength
40 psi
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.2 W/mK



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness


-40 To 160℃ Blue Silicone Pads 1.2W/M-K For LED Ceiling Lamp 0



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



FAQ:

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
