| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1140-05ES thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 12±5 Shore00 | KEYWORD: | Blue Silicone Rubber Pads |
|---|---|---|---|
| Color: | Blue | Part Number: | TIF1140-05ES |
| Material: | Silicone | Thickness: | 3.5mmT |
| Highlight: | 3.0mmT gap pad thermal conductivity,silicone thermal conductivity pad,3.0mmT Thermal Conductive Gap Pad |
||

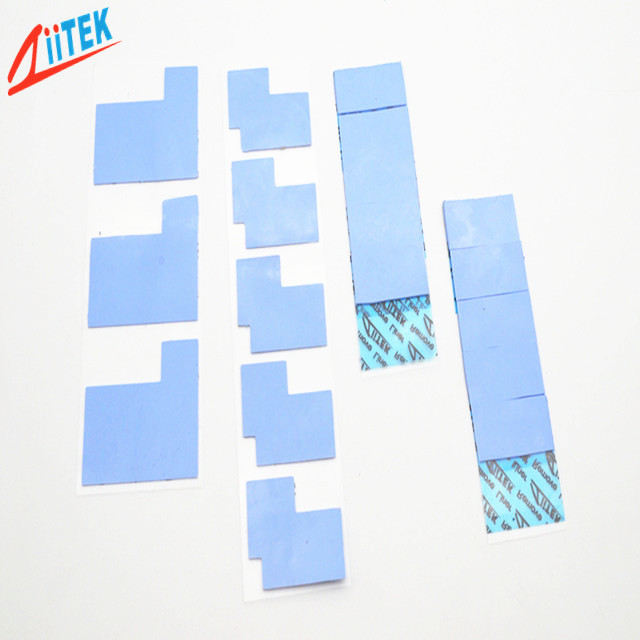

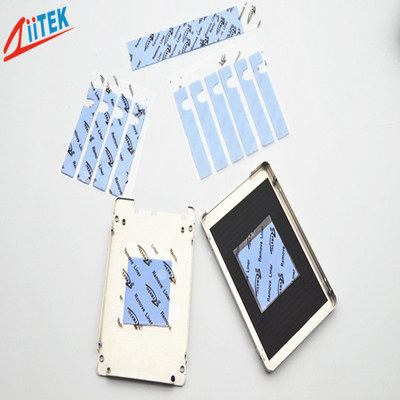

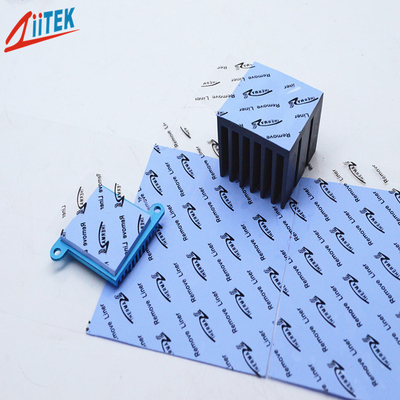

3.5mmT China company thermal conductive gap pad ,thermal conductive:1.5 W/mK supplied for power supply
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF100-05ES-Datasheet.pdf
<Easy release construction
<Electrically isolating
<High durability
<mainboard/mother board
<notebook
<power supply
<Heat pipe thermal solutions
<Heat Sinking Housing at LED-lit BLU in LCD
<LED TV and LED-lit lamps
<RDRAM memory modules
|
Typical Properties of TIF1140-05ES
|
|||
|
Product Name
|
TIF1140-05ES Series
|
||
|
Colour
|
Blue | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Density |
2.0 g/cm3
|
||
|
Thickness |
3.5mmT
|
||
|
Hardness
|
12±5 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.5 W/mK
|
||
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
