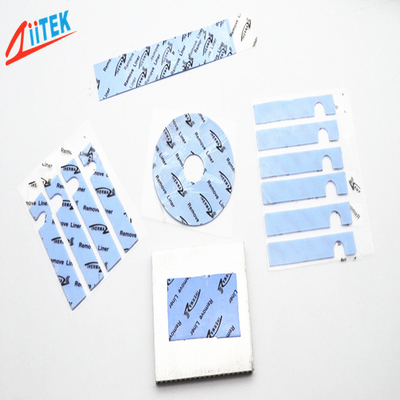

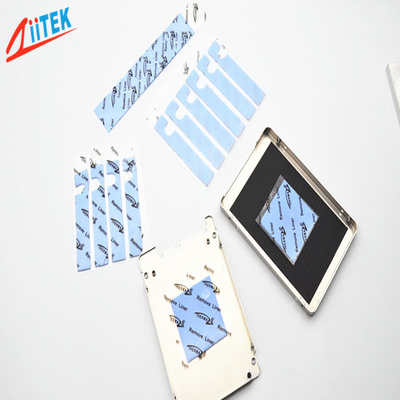

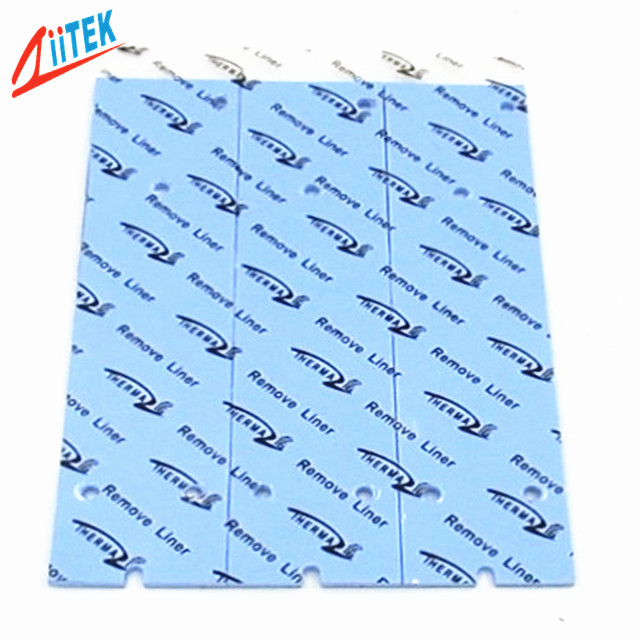

Ultra Soft Gap Pad Thermal Conductivity 12±5 Shore00 For Display Card

Ultra Soft Gap Pad Thermal Conductivity 12±5 Shore00 For Display Card

Ultra Soft Gap Pad Thermal Conductivity 12±5 Shore00 For Display Card
video
Ultra Soft Gap Pad Thermal Conductivity 12±5 Shore00 For Display Card
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1160-05ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 12±5 Shore00 KEYWORD: Blue Silicone Rubber Pads
Color: Blue Part Number: TIF1160-05ES
Material: Silicone Thickness: 4.0mmT
High Light:

UL Thermal Conductive Gap Filler

,

12±5 shore00 thermal filler

,

silicone gap pad thermal conductivity

good performance thermal conductive gap pad 2.0 g/cm, Continuos Use Temp  :-40to 160℃ for CD-Rom, DVD-Rom cooling


Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.



TIF100-05ES-Datasheet.pdf

TIF1160-05ES is an extremely soft gap filling material rated at a thermal conductivity of 1.5W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. TIF1160-05ES is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.

Features
<Good thermal conductive:1.5 W/mK
<Thickness:4.0mmT
<Hardness:12±5  Shore 00

<UL recognized

<Moldability for complex parts

<Naturally tacky needing no further adhesive coating


Applications

<CD-Rom, DVD-Rom cooling

<LED Power Supply

<power supply

<Heat pipe thermal solutions

<Memory Modules





Typical Properties of TIF1160-05ES

Product Name
TIF1160-05ES Series
Colour
Blue
Construction & Compostion
Ceramic filled silicone rubber

Density

2.0 g/cm3

Thickness

4.0mmT
Hardness
12±5  Shore 00
Tensile Strength
40 psi
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.5 W/mK




Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.


Ultra Soft Gap Pad Thermal Conductivity 12±5 Shore00 For Display Card 0
