| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF140-01ES thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 12±5 Shore00 | KEYWORD: | Drak Gray Silicone Rubber Pads |
|---|---|---|---|
| Color: | Drak Gray | Part Number: | TIF140-01ES |
| Material: | Silicone | Thickness: | 1.0mmT |
| Highlight: | 1.0mm Thermal Conductive Gap Pad,silicone material thermal conductivity pad,Dark Gray thermal gap filler pad |
||

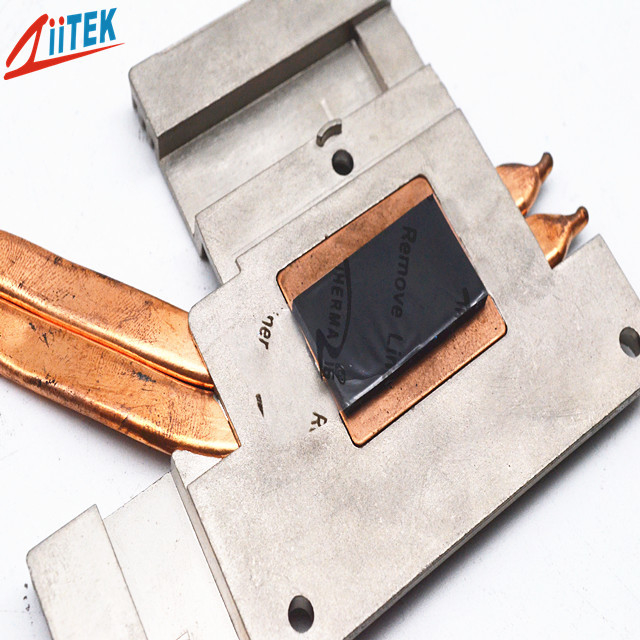

Drak gray ultra soft 12±5 Shore 00 thermal conductive gap pad For LED TV and LED-lit lamps,TIF140-01ES ,thicknes:1.0mmT
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
<Easy release construction
<Outstanding thermal performance
<LED TV and LED-lit lamps
<RDRAM memory modules
<Micro heat pipe thermal solutions
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
|
Typical Properties of TIF140-01ES
|
|||
|
Product Name
|
TIF140-01ES Series
|
||
|
Colour
|
drak gray | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific gravity |
1.9 g/cm3
|
||
|
Thickness |
1.0mmT
|
||
|
Hardness
|
12±5 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.5 W/mK
|
||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
