| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF180-01ES thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 12±5 Shore00 | KEYWORD: | Drak Gray Silicone Rubber Pads |
|---|---|---|---|
| Color: | Drak Gray | Part Number: | TIF180-01ES |
| Material: | Silicone | Thickness: | 2.0mmT |
| High Light: | 1.5 W/MK thermal conductivity pad,Self Adhesive thermal conductivity pad,1.5 W/MK Thermal Conductive Gap Pad |
||

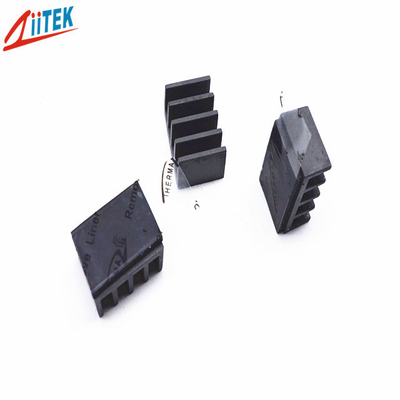

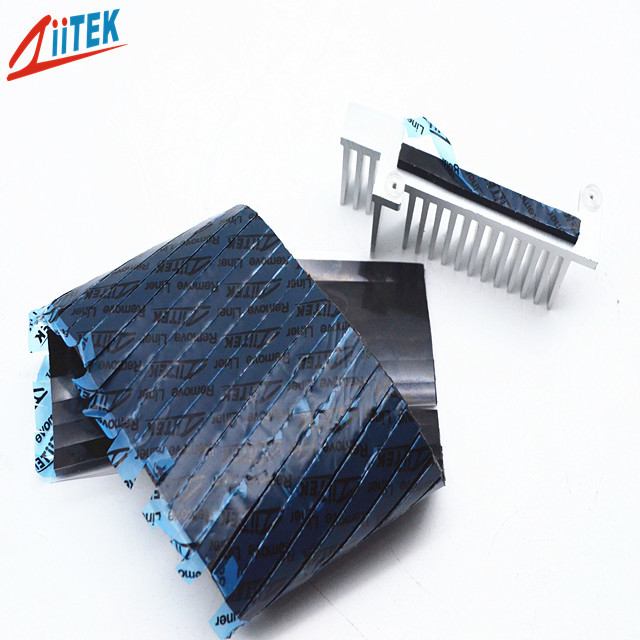

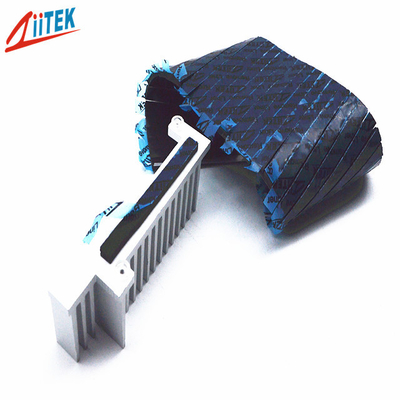

Self adhesive Memory Modules thermal conductive gap pad,2.0mmT,1.5 W/mK,that China company supplied
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
<Fiberglass reinforced for puncture, shear and tear resistance
<High durability
<Mass storage devices
<Automotive electronics
<Set top boxes
<Audio and video components
<Micro heat pipe thermal solutions
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
|
Typical Properties of TIF180-01ES
|
|||
|
Product Name
|
TIF180-01ES Series
|
||
|
Colour
|
drak gray | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific gravity |
1.9 g/cm3
|
||
|
Thickness |
2.0mmT
|
||
|
Hardness
|
12±5 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.5 W/mK
|
||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
