Name: 3.0W/MK 4.5mmT Silicone Thermal Pad For Heat Sinking Housing At LED Lit BLU In LCD
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1180-30-11US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

3.0W/MK 4.5mmT Silicone Thermal Pad For Heat Sinking Housing At LED Lit BLU In LCD

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL and RoHs
Model Number:	TIF1180-30-11US thermal pad
Document:	TIF100-30-11US_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	3.0W/MK 4.5mmT Silicone Thermal Pad For Heat Sinking Housing At LED Lit BLU In LCD	Hardness:	65/20 Shore00
Keywords:	Silicone Thermal Pad	Color:	Gray
Part Number:	TIF1180-30-11US	Construction & Compostion:	Ceramic Filled Silicone Elastomer
Thickness:	4.5mmT	Thermal Conductivity:	3.0W/mK
Application:	Heat Sinking Housing At LED Lit BLU In LCD
Highlight:	Heat Sinking Housing Thermal Pad , Silicone Thermal Pad 4.5mmT , Silicone Thermal Pad 3.0W/MK

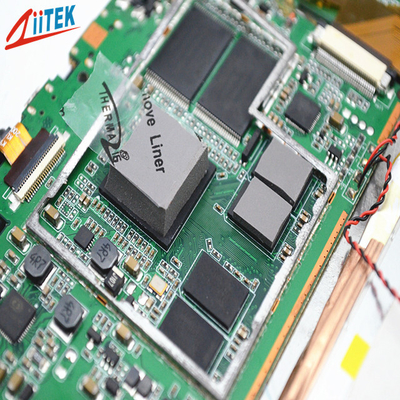

3.0W/MK 4.5mmT Silicone Thermal Pad For Heat Sinking Housing At LED Lit BLU In LCD

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Products description

TIF^®1180-30-11US is an extremely soft gap filling material rated at a thermal conductivity of 3.0W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. TIF1180-30-11US is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.

Features

>Good thermal conductive: 3.0W/mK

>Thickness: 4.5mmT

>Hardness: 65/20 Shore 00

>Color: dark gray

>Moldability for complex parts

>Outstanding thermal performance

>Electrically isolating

>High durability

Applications

>Automotive engine control units

>Telecommunication hardware

>Handheld portable electronics

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

Key attributes

Typical Properties of TIF^®100-30-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1MHz	7.0		ASTM D150
Volume Resistivity(Ohm-meter)	＞1.0X10¹²		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity (W/m-K)	3.0		ASTM D5470
	3.0		ISO22007

Product Specifications

Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

3.0W/MK 4.5mmT Silicone Thermal Pad For Heat Sinking Housing At LED Lit BLU In LCD 0

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
