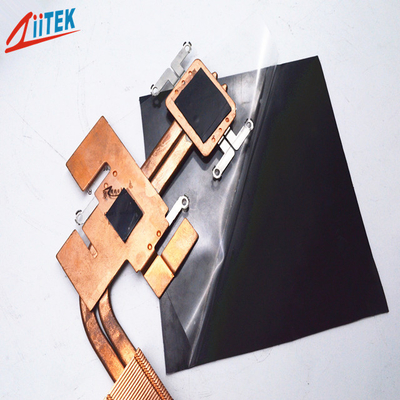

Thermal Conductive Gap Filler 2.0mmT 1.8W/MK For Micro Heat Pipe Thermal Solutions

Thermal Conductive Gap Filler 2.0mmT 1.8W/MK For Micro Heat Pipe Thermal Solutions

Thermal Conductive Gap Filler 2.0mmT 1.8W/MK For Micro Heat Pipe Thermal Solutions
video
Thermal Conductive Gap Filler 2.0mmT 1.8W/MK For Micro Heat Pipe Thermal Solutions
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF180-18-01US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 18 Shore00 KEYWORD: Black Silicone Rubber Pads
Color: Black Part Number: TIF180-18-01US
Material: Silicone
High Light:

Thermal Conductive Gap Filler 2.0mmT

,

Thermal Conductive Gap Filler 1.8W/MK

,

Thermal Conductive Gap Filler black

Factory supply low cost thermal conductive gap filler,2.0mmT 1.8W/mK for micro heat pipe thermal solutions


Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



TIF100-18-01US-Specification-sheet.pdf


TIF180-18-01US is a highly compliant Gap Pad material that is ideal for fragile component leads. The material is fiberglass reinforced for improved puncture resistance and handling TIF180-18-01US maintains a conformable, yet elastic nature that provides excellent interfacing and wet-out characteristics, even to surfaces with high roughness or uneven topography. TIF180-18-01US features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configurationStandard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request

Features
<Good thermal conductive:1.8W/mK
<Thickness:2.0mmT
<Hardness:18  Shore 00
<Colour: black

<Easy release construction

<High tack surface reduces contact resistance

<Outstanding thermal performance


Applications

<Mass storage devices

<Automotive electronics

<Set top boxes

<Audio and video components

<IT infrastructure

<Micro heat pipe thermal solutions

<Automotive engine control units

<Telecommunication hardware









Typical Properties of TIF180-18-01US

Product Name

 TIF180-18-01US Series

Colour
black
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

2.5 g/cc

Thickness

2.0mmT
Hardness
18 Shore 00
Dielectric constant@1MHz
4.5 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.8 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.

Thermal Conductive Gap Filler 2.0mmT 1.8W/MK For Micro Heat Pipe Thermal Solutions 0

FAQ

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
