Thermal Conductive Gap Pad For Micro Heat Pipe Thermal Solutions 18 Shore 00 5.0mmT

Thermal Conductive Gap Pad For Micro Heat Pipe Thermal Solutions 18 Shore 00 5.0mmT

Thermal Conductive Gap Pad For Micro Heat Pipe Thermal Solutions 18 Shore 00 5.0mmT
video
Thermal Conductive Gap Pad For Micro Heat Pipe Thermal Solutions 18 Shore 00 5.0mmT
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1200-18-01US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Hardness: 18 Shore00 KEYWORD: Black Silicone Rubber Pads
Color: Black Part Number: TIF1200-18-01US
Material: Silicone Thermal Conductive: 1.8W/mK
High Light:

Micro Heat Pipe thermal gap filler

,

Micro Heat Pipe Thermal Gap Pad

,

Thermal Gap Pad 18 Shore 00

professional factory thermal conductive gap pad for Micro heat pipe thermal solutions,18 Shore 00,5.0mmT


Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



TIF100-18-01US-Specification-sheet.pdf


TIF1200-18-01US  is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling

Features
<Good thermal conductive:1.8W/mK
<Thickness:5.0mmT
<Hardness:18  Shore 00
<Colour: black

<Easy release construction

<Electrically isolating

<High durability


Applications

<power supply

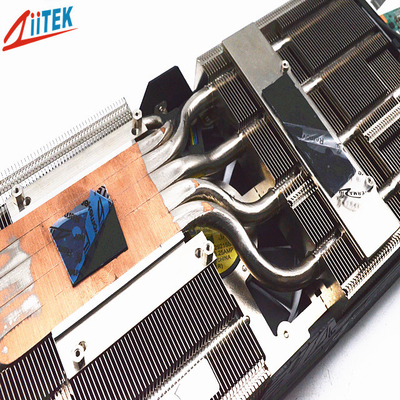

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power











Typical Properties of TIF1200-18-01US

Product Name

TIF1200-18-01US Series

Colour
black
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

2.5 g/cc

Thickness

5.0mmT
Hardness
18 Shore 00
Dielectric constant@1MHz
4.5 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.8 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.



Thermal Conductive Gap Pad For Micro Heat Pipe Thermal Solutions 18 Shore 00 5.0mmT 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
