Name: Gps Navigation Portable Devices 1.2W/MK Heat Sink Rubber Pads 1.2W/Mk
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF120-12-05US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Gps Navigation Portable Devices 1.2W/MK Heat Sink Rubber Pads 1.2W/Mk

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF120-12-05US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Prodcuts Name:	Gps Navigation Portable Devices 1.2W/MK Heat Sink Rubber Pads 1.2W/Mk	Hardness (Shore 00):	65/20
Keywords:	Heat Sink Rubber Pads	Color:	Blue
Construction:	Ceramic Filled Silicone Elastomer	Thermal Conductivity:	1.2W/mK
Application:	Gps Navigation Portable Devices	Sample:	Sample Free
Density:	2.0g/cm³
Highlight:	gps navigation heat sink rubber pads , portable devices heat sink rubber pads , 1.2w/mk silicone heat sink pad

Gps Navigation Portable Devices 1.2W/MK Heat Sink Rubber Pads 1.2W/Mk

Company Profile

Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

Products Description

TIF^®120-12-05US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines good thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit.

Features

>Good thermal conductive:1.2W/mK

>Colour: Blue

>Moldability for complex parts
>Outstanding thermal performance
>High tack surface reduces contact resistance

Applications

>Monitoring the Power Box
>AD-DC Power Adapters
>Rainproof LED Power
>Waterproof LED Power
>SMD LED module

Typical Properties of TIF^®100-12-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.2 W/m-K		ASTM D5470
	1.2 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.

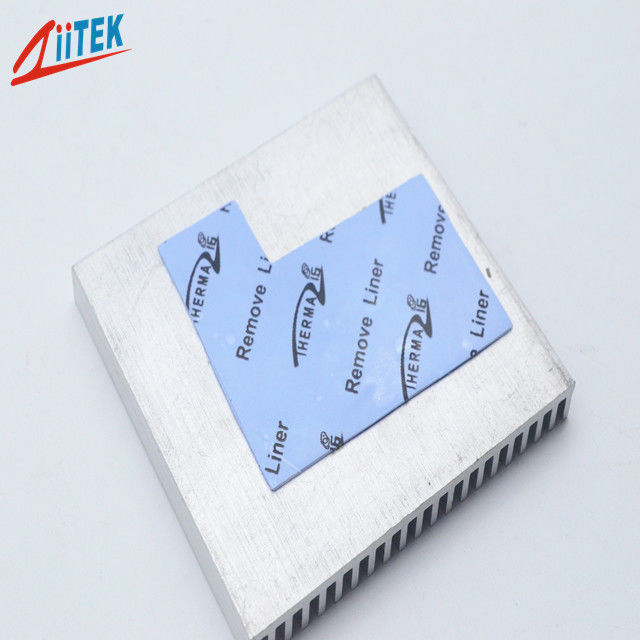

Gps Navigation Portable Devices 1.2W/MK Heat Sink Rubber Pads 1.2W/Mk 1
FAQ

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.

Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
