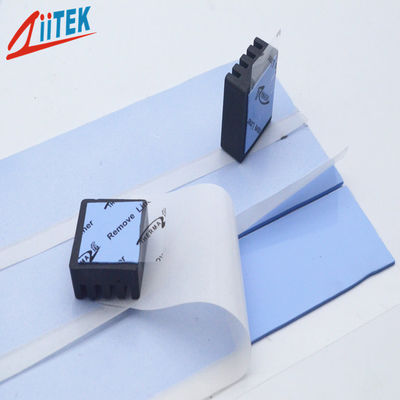

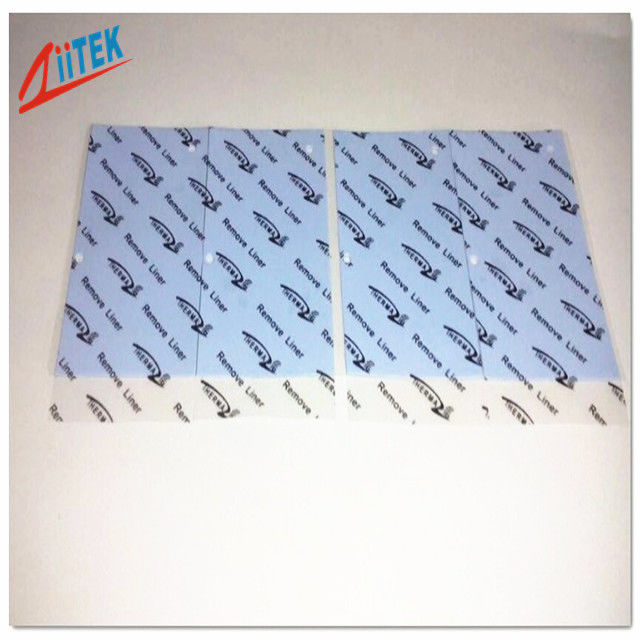

Name: Fiberglass Reinforced Silicone Routers 5.0mmt Cpu Thermal Pad Soft Heat Conductive Material
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1200-12-05US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Fiberglass Reinforced Silicone Routers 5.0mmt Cpu Thermal Pad Soft Heat Conductive Material

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF1200-12-05US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Fiberglass Reinforced Silicone Routers 5.0mmt Cpu Thermal Pad Soft Heat Conductive Material	Hardness:	65/20 Shore00
Keywords:	Cpu Thermal Pad	Color:	Blue
Material:	Ceramic Filled Silicon Material	Thermal Conductive:	1.2W/mK
Thickness:	5.0mmT	Density:	2.0g/cm³
Highlight:	5.0mmt cpu thermal pad , soft heat conductive cpu thermal pad , thermal silicone cpu pad

Fiberglass Reinforced Silicone Routers 5.0mmt Cpu Thermal Pad Soft Heat Conductive Material

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIF^®1200-12-05US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling

Features

>Good thermal conductive:1.2W/mK

>Thickness:5.0mmT

>Colour: blue

>Fiberglass reinforced for puncture, shear and tear resistance

>Easy release construction

>Electrically isolating

Applications

>cooling components to the chassis of frame

>High speed mass storage drives

>Heat Sinking Housing at LED-lit BLU in LCD

>LED TV and LED-lit lamps

>RDRAM memory modules

>Micro heat pipe thermal solutions

Typical Properties of TIF^®100-12-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.2 W/m-K		ASTM D5470
	1.2 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
