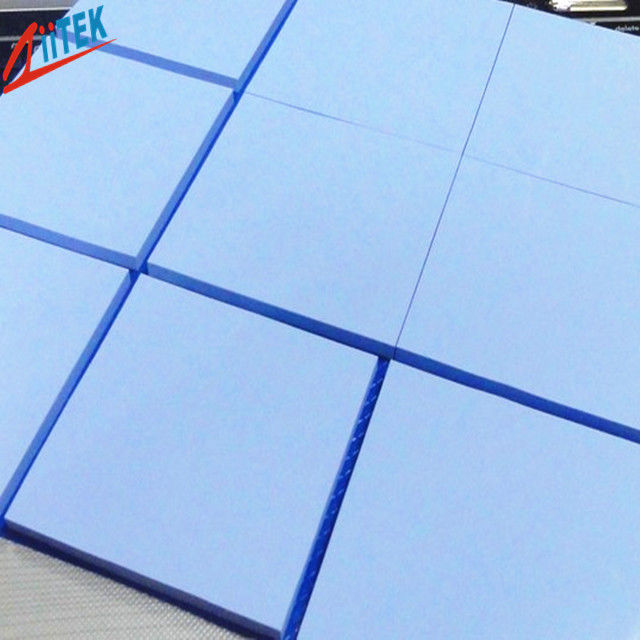

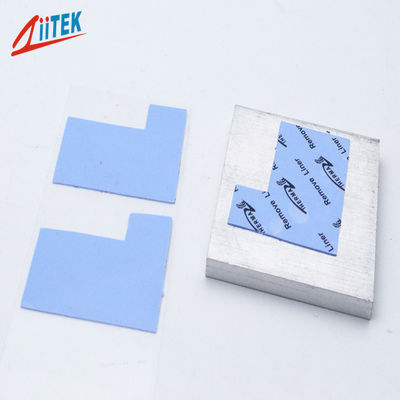

Name: Display Card 2.0g/Cm³ Silicone Thermal Heatsink Insulator Pads 2.5 Mm thickness
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1100-12-05US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Display Card 2.0g/Cm³ Silicone Thermal Heatsink Insulator Pads 2.5 Mm thickness

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF1100-12-05US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Prodcuts Name:	Display Card 2.0g/Cm³ Silicone Thermal Heatsink Insulator Pads 2.5 Mm Thickness	Hardness:	65/20 Shore00
Keywords:	Thermal Insulator Pads	Color:	Blue
Construction:	Ceramic Filled Silicone Elastomer	Thermal Conductive:	1.2W/mK
Application:	Display Card,CPU,GPU	Sample:	Sample Free
Thickness:	0.010"(0.25mm)~0.200"(5.0mm)
Highlight:	blue silicone thermal heatsink insulator pads , 2.5 mmt silicone thermal heatsink insulator pads , 2.5 mmt thermal pad for heat sink

Display Card 2.0g/Cm³ Silicone Thermal Heatsink Insulator Pads 2.5 Mm thickness

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Prodcuts description

TIF^®1100-12-05US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

>Good thermal conductive:1.2W/mK

>Thickness:2.5mmT

>Soft and compressible for low stress applications
>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses

Applications

>Micro heat pipe thermal solutions
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU

Typical Properties of TIF^®100-12-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.2 W/m-K		ASTM D5470
	1.2 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
