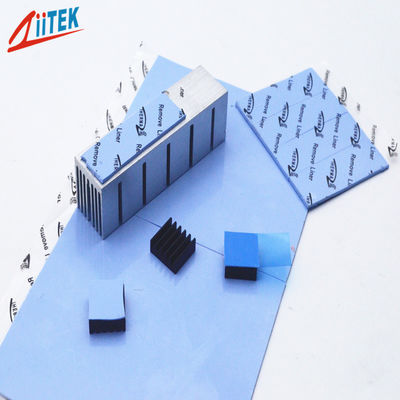

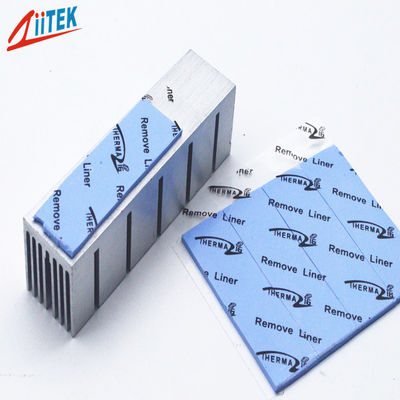

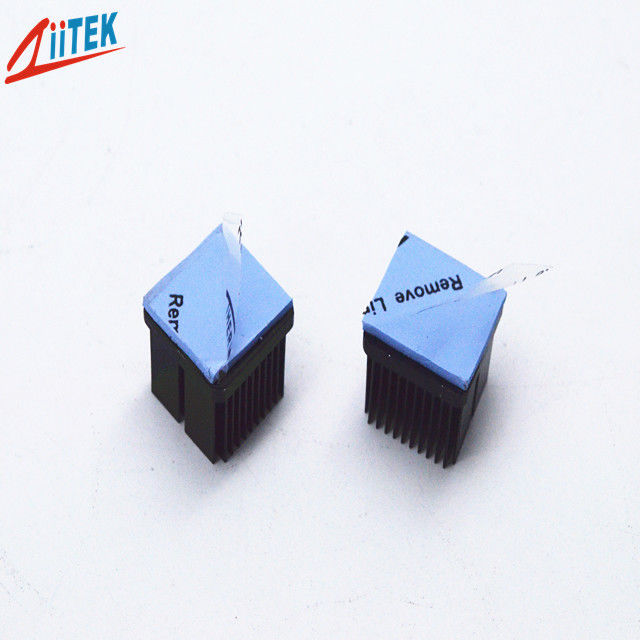

Name: Notebook Silicone Heat Sink Thermal Gap Filler Pad Thickness 2.0mm
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF180-12-05US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

Notebook Silicone Heat Sink Thermal Gap Filler Pad Thickness 2.0mm

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF180-12-05US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm carton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	Notebook Silicone Heat Sink Thermal Gap Filler Pad Thickness 2.0mm	Hardness:	65/20 Shore00
Keywords:	Thermal Gap Filler Pad	Color:	Blue
Construction:	Ceramic Filled Silicone Elastomer	Thermal Conductive:	1.2W/mK
Density:	2.0g/cm³	Thickness:	2.0mm
Highlight:	notebook silicone heat sink pad , thermal conductive silicone heat sink pad , notebook thermal conductive pads heatsink

Notebook Silicone Heat Sink Thermal Gap Filler Pad Thickness 2.0mm

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Products description

TIF^®180-12-05US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

>Good thermal conductive:1.2W/mK

>Thickness:2.0mmT

>Hardness:20±5 Shore 00

>Colour: blue

>Easy release construction

>Electrically isolating

>High durability

Applications

>Monitoring the Power Box

>AD-DC Power Adapters

>Rainproof LED Power

>notebook

>power supply

>Heat pipe thermal solutions

Typical Properties of TIF^®100-12-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.2 W/m-K		ASTM D5470
	1.2 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Notebook Silicone Heat Sink Thermal Gap Filler Pad Thickness 2.0mm 1

FAQ

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
