| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1200-12-05US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 20±5 Shore00 | KEYWORD: | Blue Silicone Rubber Pads |
|---|---|---|---|
| Color: | Blue | Part Number: | TIF1200-12-05US |
| Material: | Silicone | Thermal Conductive: | 1.2W/mK |
| High Light: | 5.0mmt cpu thermal pad,soft heat conductive cpu thermal pad,thermal silicone cpu pad |
||

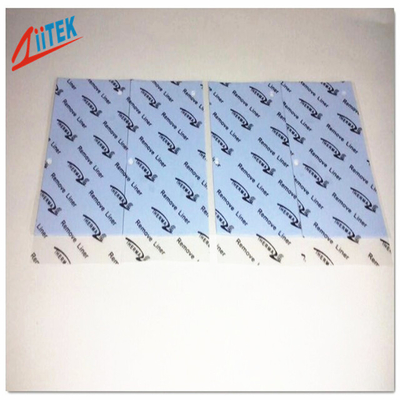

manufactured Fiberglass reinforced for puncture Easy release construction silicone thermal pad for routers ,5.0mmT
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
<Fiberglass reinforced for puncture, shear and tear resistance
<Easy release construction
<Electrically isolating
<cooling components to the chassis of frame
<High speed mass storage drives
<Heat Sinking Housing at LED-lit BLU in LCD
<LED TV and LED-lit lamps
<RDRAM memory modules
<Micro heat pipe thermal solutions
|
Typical Properties of TIF1200-12-05US
|
|||
|
Product Name
|
TIF1200-12-05US Series |
||
|
Colour
|
blue | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
2.0 g/cc
|
||
|
Thickness |
5.0mmT
|
||
|
Hardness
|
20±5 Shore 00
|
||
|
Dielectric constant@1MHz
|
4.5 MHz
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.2 W/mK
|
||
| Volume Resistiviyt |
1.0*1012 Ohm-cm |
||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Contact Person: Miss. Dana
Tel: +86 18153789196
