| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF120-50-11US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 20 Shore00 | KEYWORD: | Gray Silicone Rubber Pads |
|---|---|---|---|
| Color: | Gray | Part Number: | TIF120-50-11US |
| Material: | Silicone | Thermal Conductive: | 5.0W/mK |
| High Light: | 0.5mmt silicone thermal pad,telecommunication hardware silicone thermal pad,0.5mmt thermal pad for cpu |
||

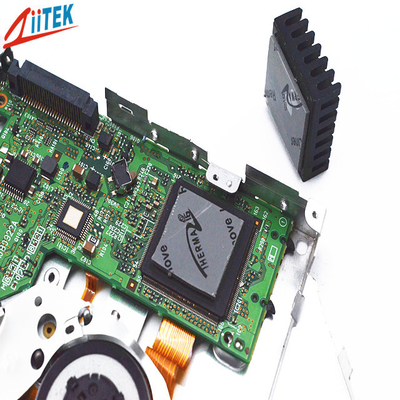

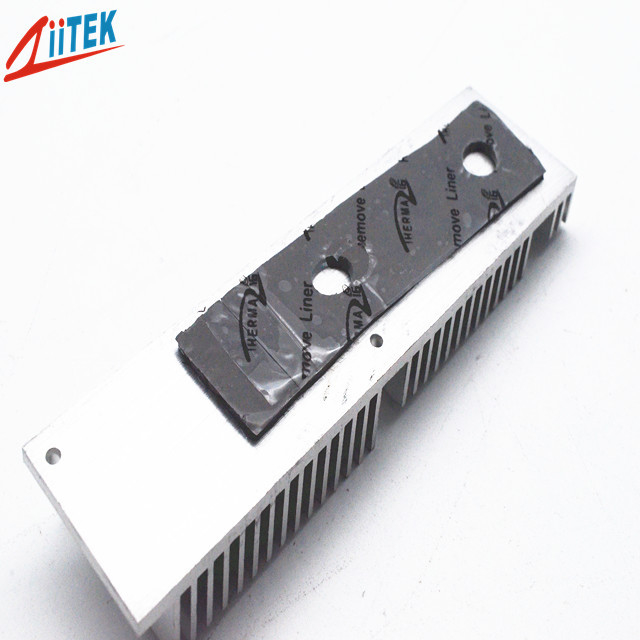

Broad range of hardnesses available Easy release construction silicone sheets for Telecommunication hardware, 0.5mmT
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
<Good thermal conductive
<Moldability for complex parts
<Soft and compressible for low stress applications
<mainboard/mother board
<notebook
<power supply
<Heat pipe thermal solutions
<Memory Modules
<Mass storage devices
Typical Properties of TIF120-50-11US | |||
Product Name | TIF120-50-11US Series | ||
Colour | gray | ||
Construction & Compostion | Ceramic filled silicone elastomer | ||
Specific gravity | 2.9 g/cc | ||
Thickness | 0.5mmT | ||
Hardness | 20 Shore 00 | ||
Dielectric constant@1MHz | 4.2 MHz | ||
Continuos Use Temp | -40to 160℃ | ||
Dielectric Breakdown Voltage | >5500 VAC | ||
Thermal conductivity | 5.0 W/mK | ||
| Volume Resistiviyt | 1.0*1012 Ohm-cm | ||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
