| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1200-40-11US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Color: | Gray | Name: | 4.0W/mK Outstanding Thermal Performance 5.0mmT Silicone Pads For Routers |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Density: | 3.15g/cm3 |
| Continuos Use Temp: | -40to 160℃ | Dielectric Constant: | 4.0 MHz |
| High Light: | 4.0w/mk cpu thermal pad,5.0mmt cpu thermal pad,outstanding thermal performance conductive silicone pad |
||

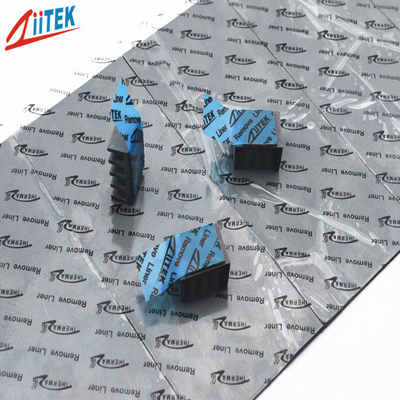

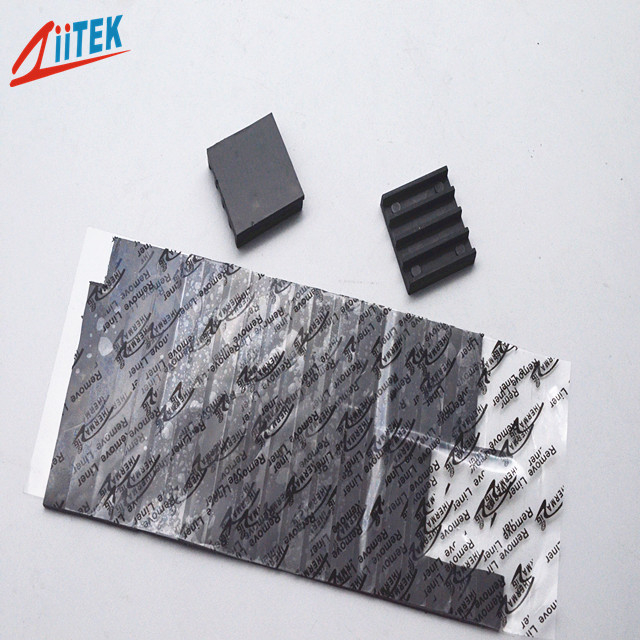

4.0W/mK Outstanding thermal performance 5.0mmT silicone pads for Routers
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
<Good thermal conductive
<Moldability for complex parts
<Waterproof LED Power
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
<LED floor light
<Routers
|
Typical Properties of TIF1200-40-11US
|
|||
|
Product Name
|
TIF1200-40-11US Series |
||
|
Colour
|
gray | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
3.15 g/cc
|
||
|
Thickness |
5.0mmT
|
||
|
Hardness
|
20 Shore 00
|
||
|
Dielectric constant@1MHz
|
4.0 MHz
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage |
>5500 VAC
|
||
|
Thermal conductivity
|
4.0 W/mK
|
||
| Volume Resistiviyt |
6.0*1012 Ohm-cm |
||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
