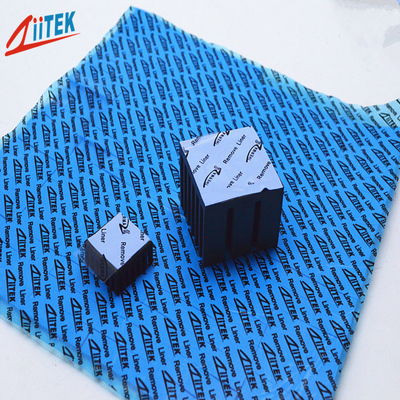

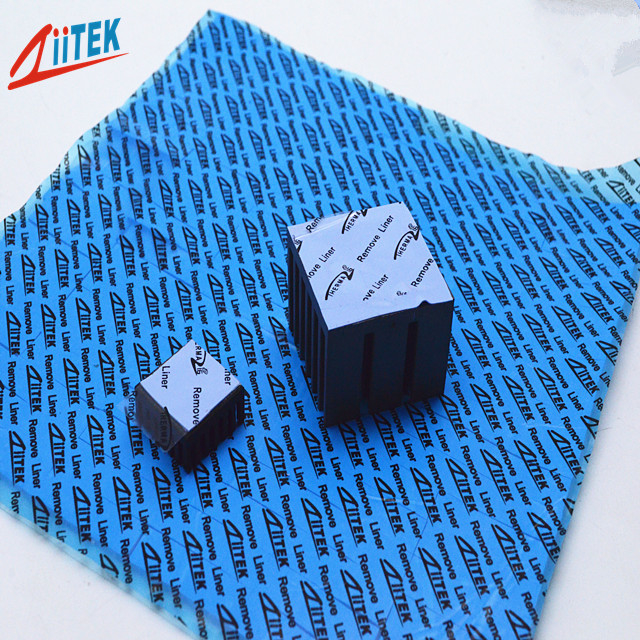

Insulation 4.5mm Heat Sink Thermal Pad For SMD LED Module

Insulation 4.5mm Heat Sink Thermal Pad For SMD LED Module

Insulation 4.5mm Heat Sink Thermal Pad For SMD LED Module
video
Insulation 4.5mm Heat Sink Thermal Pad For SMD LED Module
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1180-05UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Thickness: 4.5mmT Color: Blue
Hardness: 75 Shore 00 Name: -40 To 160℃ Insulation And Low Cost Thermal Pad For SMD LED Module
Keyword: Thermal Gap Pad Feature: Broad Range Of Hardnesses Available
High Light:

4.5mm Heat Sink Thermal Pad

,

SMD Module Heat Sink Thermal Pad

,

4.5mm Thermal Pad For Heat Sink

-40 to 160℃ Insulation and Low Cost Thermal Pad for SMD LED Module



Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



TIF100-05UF-Datasheet-REV02.pdf



Ziitek TIF1180-05UF is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.




<Good thermal conductive:1.5 W/mK
<Thickness: 4.5mmT
<Hardness:75 Shore 00
<Colour: Blue

<Outstanding thermal performance
<High tack surface reduces contact resistance
<RoHS compliant






Applications

<Waterproof LED Power
<SMD LED module
<LED Flesible strip, LED bar
<LED PanelLight
<LED floor light
<Routers



Typical Properties of TIF1180-05UF

Product Name TIF1180-05UF Series
ColourBlue
Construction & CompostionCeramic filled silicone elastomer
Specific gravity2.2 g/cc
Thickness4.5mmT
Hardness75 Shore 00
Dielectric constant@1MHz3.9 MHz
Continuos Use Temp-40 to 160℃
Dielectric Breakdown Voltage>5500 VAC
Thermal conductivity1.5 W/mK
Volume Resistivity1.0*1012 Ohm-cm


Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.



Insulation 4.5mm Heat Sink Thermal Pad For SMD LED Module 0



Ziitek Culture

Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



Insulation 4.5mm Heat Sink Thermal Pad For SMD LED Module 1

FAQ

Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
