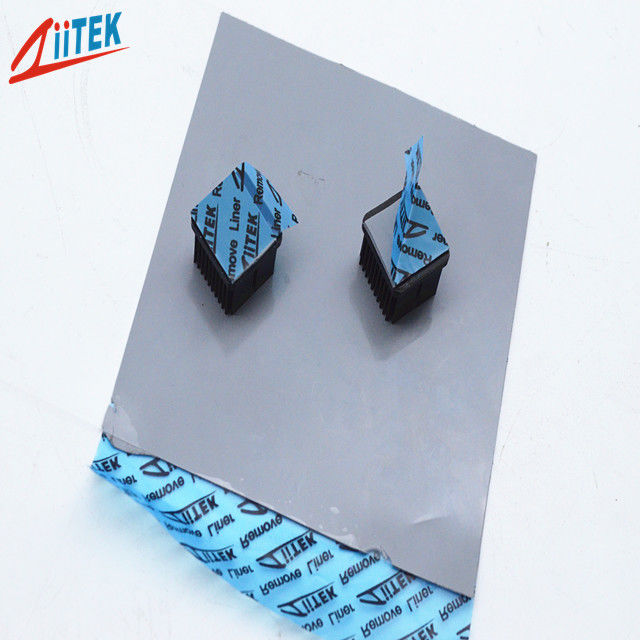

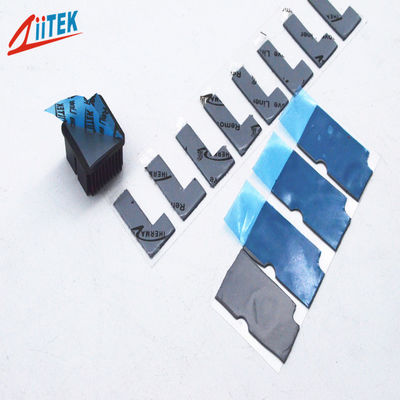

Name: Gray Wholesale Thermal Silicone Insulator Sheet Thermally Conductive Pad For 5G Base Station
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF740PES thermal pad
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

Gray Wholesale Thermal Silicone Insulator Sheet Thermally Conductive Pad For 5G Base Station

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF740PES thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Gray Wholesale Thermal Silicone Insulator Sheet Thermally Conductive Pad For 5G Base Station	Density:	3.4 G/cm³
Hardness (Shore 00):	55/10	Keyword:	Thermal Silicone Insulator Sheet
Thickness:	1.0mmT	Thermal Conductivity (W/m-K):	7.5W/mK
Application:	5G Base Station	Flame Rating:	UL94-V0
Highlight:	Thermally Conductive Silicone Pad , Wholesale Thermal Silicone Pad , Gray Color Silicone Pad

Gray Wholesale Thermal Silicone Insulator Sheet Thermally Conductive Pad For 5G Base Station

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Gray Wholesale Thermal Silicone Insulator Sheet Thermally Conductive Pad For 5G Base Station 0

Products description

Ziitek TIF^®740PES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

>Excellent thermal conductivity
>Extremely soft,low compression stress effectively protects sensitive components
>Self-adhesive without the need for additional surface adhesives
>High insulation performance

Applications

>Heat pipe thermal solutions
>Memory Modules
>Mass storage devices
>Automotive electronics
>Set top boxes
>Audio and video components

>Al Servers
>Semiconductor Packaging
>Low-Altitude Aircraft
>Optical Communication Products
>5G Base Stations

Typical Properties of TIF^®700PES Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.4		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.75)	0.040~0.200 (1.0~5.00)	ASTM D374
Hardness	55 Shore 00	10 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.6 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	7.5 W/m-K		ASTM D5470
	7.5 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.020"(0.50 mm)~ 0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

Gray Wholesale Thermal Silicone Insulator Sheet Thermally Conductive Pad For 5G Base Station 1

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

FAQ

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
