Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity

Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity

  • Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity
  • Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity
Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF7100PES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Part Number: TIF7100PES Name: Wholesale Customized Thermal Pad
Specific Gravity: 3.2 G/cm³ Hardness: 10
Thickness: 2.5mmT Keyword: Thermal Pad
High Light:

Customizable Thermal Pad

,

3.2 g/cm3 Thermal Pad

Wholesale Customized Thermal Pad



Company Profile



Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.





TIF700PES-(TDS-EN-REV04).pdf

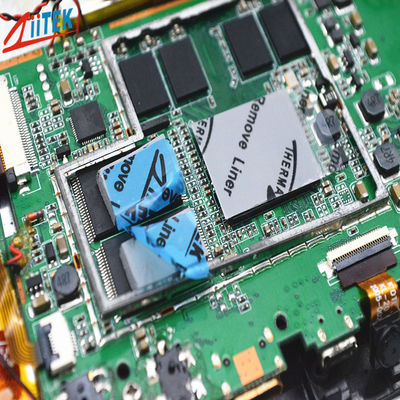

Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity 0



Ziitek TIF7100PES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.



< Good thermal
< Hardness: 10
< Colour: gray

< Electrically isolating
< High durability
< Good thermal conductive





Applications


> LED Panel Light
> LED floor light
> Routers
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD






Typical Properties of TIF7100PES

Product Name TIF7100PES Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

3.2 g/cc

Thickness 2.5mmT
Hardness(Shore 00) 10
Dielectric constant@1MHz 5~6 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5000 VAC
Thermal conductivity 7.5W/mK
Flame Rating(no.E331100) V-0





Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

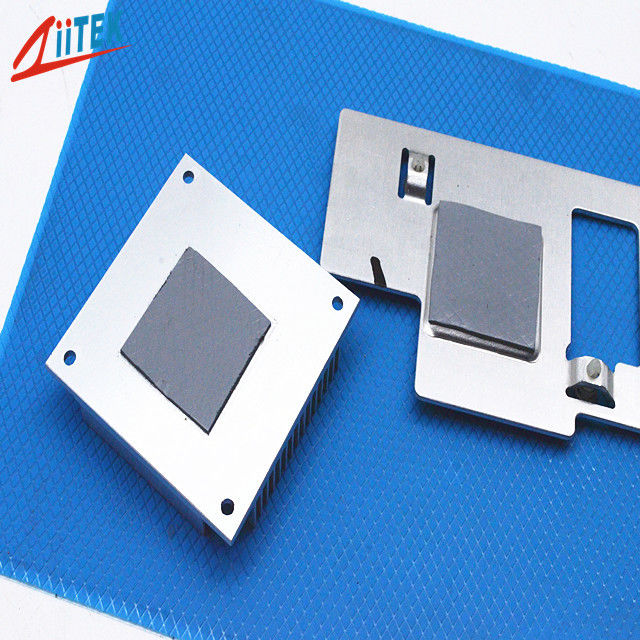

Customizable Thermal Pad with 3.2 g/cm3 Specific Gravity 1

Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
