Name: Medical Equipment Silicone Thermal Pad with 8.5 W/mK Thermal Conductivity Die-Cut and Customised 0.5mmT Thickness Range
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF720RUS Series
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Medical Equipment Silicone Thermal Pad with 8.5 W/mK Thermal Conductivity Die-Cut and Customised 0.5mmT Thickness Range

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF720RUS Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Sample:	Sample Avaliable	Products Name:	Die-Cut Customised High Thermal Conductivity Medical Equipment Silicone Thermal Pad
Flam Rating:	94 V0	Thermal Conductivity:	8.5 W/mK
Thinkness Range:	0.5mmT	Color:	Gray
Certification:	RoHS And UL Recognized	Keywords:	Silicone Thermal Pad
Hardness:	20 Shore 00
Highlight:	0.5mmT Silicone Thermal Pad , 8.5 W/mK Silicone Thermal Pad , Customised Silicone Thermal Pad

Die-Cut Customised High Thermal Conductivity Medical equipment silicone Thermal Pad

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF720RUS is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

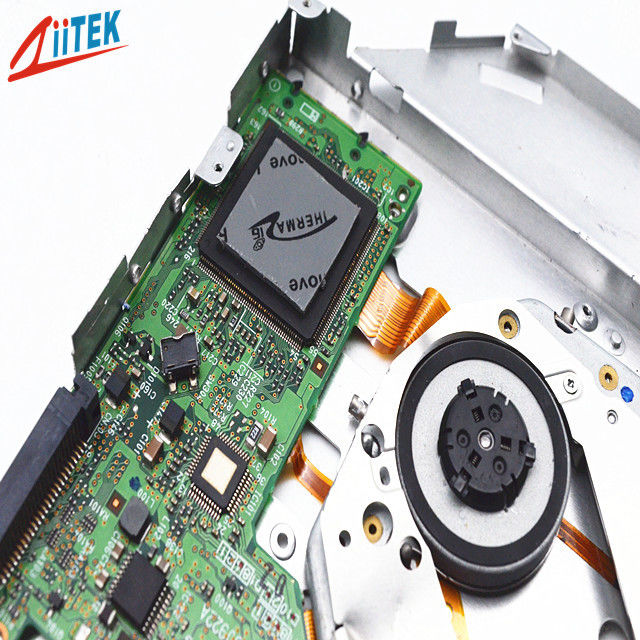

Medical Equipment Silicone Thermal Pad with 8.5 W/mK Thermal Conductivity Die-Cut and Customised 0.5mmT Thickness Range 0

Features

> Good thermal conductive : 8.0W/mK
> Soft and Compressible for low stressapplications
> High tack surface reduces contact resistance
> Naturally tacky needing no further adhesive coating
> Outstanding thermal performance
> Easy release construction
> Electrically isolating
> High durability

Applications

> Set top boxes
> Audio and video components
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Set top boxes
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar

Typical Properties of TIF720RUS Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	*******
Specific Gravity	3.2g/cc	ASTM D297
Thickness range	0.5mm	ASTM C351
Hardness (thickness ≥1.0mm)	20 Shore 00	ASTM 2240
Dielectric Breakdown Voltage	>3500 VAC	ASTM D412
Operating Temp	-45 ~200℃	*******
Dielectric Constant	5.1~6.1 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	8.5W/mK	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplied.

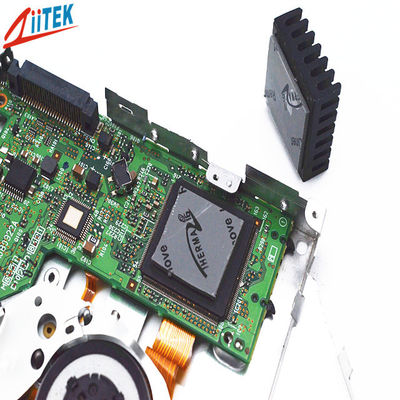

Medical Equipment Silicone Thermal Pad with 8.5 W/mK Thermal Conductivity Die-Cut and Customised 0.5mmT Thickness Range 1

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Tag:

Contact Person: Dana Dai

Tel: +86 18153789196
