High Performance 6.5W Heatsink Thermal Pads GPU CPU Cooling Conductive Silicone Thermal Pad

High Performance 6.5W Heatsink Thermal Pads GPU CPU Cooling Conductive Silicone Thermal Pad

Company Profile

ZiitekZiitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

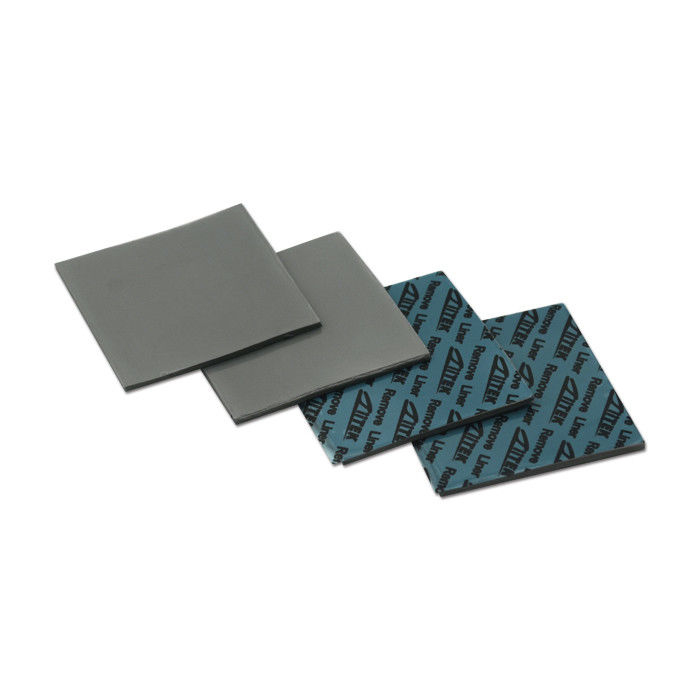

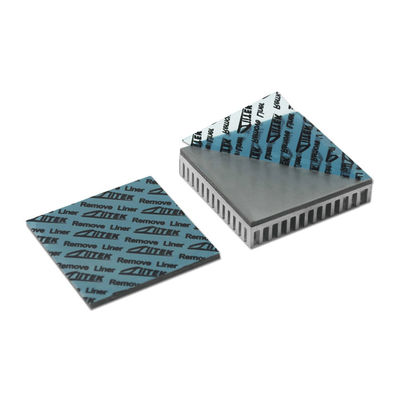

TIF^®100 6520-11 series of thermal interface materials is specifically designed to fill air gaps between heat-generating components and heat sinks or metal baseplates.lt offers excellent compliance, allowing it to conform tightly to heat sources with varying shapes and height differences. Even in confined or irregular spaces,it maintains stable thermal conductivity, enabling efficient heat tansfer from discrete components or the entire PCB to the metal housing or heat sink ,This significantly improves the heat dissipation efficiency of electronic components, thereby enhancing operational stability and extending device lifespan.

Features:
> Excellent thermal conductivity 6.5W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> Easy release construction
> Electrically isolating
> High durability

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> CPU And GPU processors and other chipsets
> Display card
> Mainboard/mother board
> Memory Modules
> Audio and video components
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)



Product Specification
Product Thicknesses: 0.02"(0.50mm)-0.200"(5.00mm)

Product Sizes:16" x 16"(406mm x406mm)



Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1(Single-sided hardening).

Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).
Notes:FG (Fiberglass) provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25to 0.5mm).

The TIF series is available in custom shapes and various forms.For other thicknesses or more information, please contact us.



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
