Name: Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For LED Flesible Strip LED Bar
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-07E Series
Price: 4.10 USD
Availability: InStock

Home Products Heat Sink Thermal Pad

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For LED Flesible Strip LED Bar

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-07E Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For LED Flesible Strip LED Bar	Dielectric Constant:	4.7MHz
Sample:	Sample Free	Thermal Conductivity:	1.5W/m-K
Thickness Range:	0.010"~0.200"(0.25mm~5.0mm)	Keywords:	Thermal Management Materials
Color:	Green	Fire Rating:	94 V0
Dielectric Breakdown Voltage:	>5500 VAC	Application:	Semiconductor, LED Flesible Strip LED Bar
Highlight:	Thermally conductive gap filler pads , Soft thermal pads for LED strips , Premium heat sink gap filler

High Conductive Insulation Thermal Silicone Pad Cooling Gap Filler For Semiconductor, Medical Equipment, Mask Aligner

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Ziitek TIF^®100-07E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives

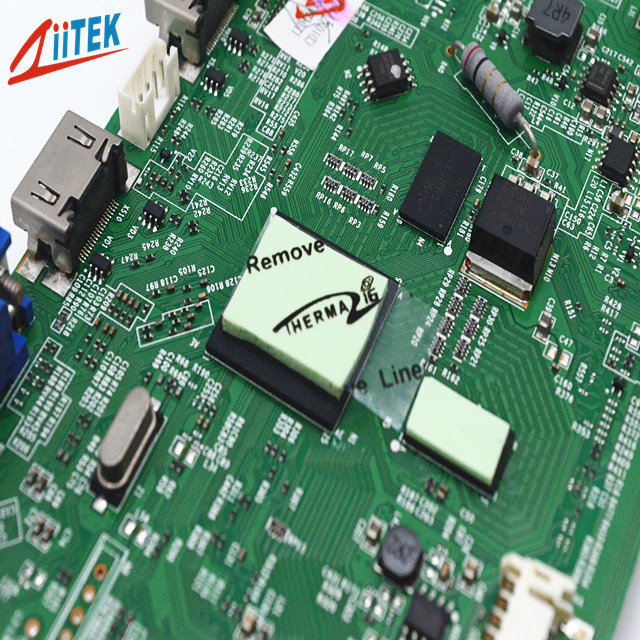

> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light

Typical Properties of TIF^®100-07E Series
Property	Value		Test method
Color	Green		Visual
Construction & Compostion	Ceramic filled silicone elastomer		-
Density(g/cm³)	2.1		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		-
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.7 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.5 W/m-K		ASTM D5470
	1.5 W/m-K		ISO22007

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For LED Flesible Strip LED Bar 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For LED Flesible Strip LED Bar 1
