| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL & RoHS |
| Model Number: | TIF100-30-25S |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Products Name: | Customizable 1.5W/Mk High-Temperature Silicone Flexible Thermal Pads With Self Adhesive For LED Lighting Heat Application | Dielectric Constant: | 6.0MHz |
|---|---|---|---|
| Application: | LED Lighting Heat Application | Sample: | Sample Free |
| Thermal Conductivity: | 3.0W/m-K | Thickness Range: | 0.010"~0.200"(0.25mm~5.0mm) |
| Color: | Pink | Fire Rating: | 94 V0 |
| Breakdown Voltage(V/mm)): | ≥5500 VAC | Keywords: | Thermal Pads |

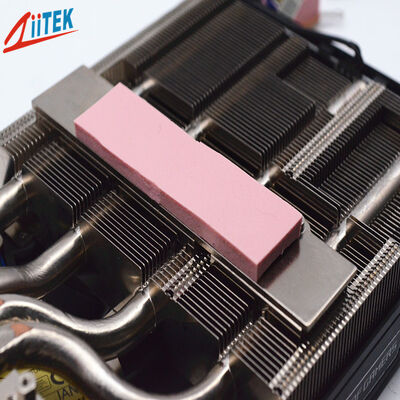

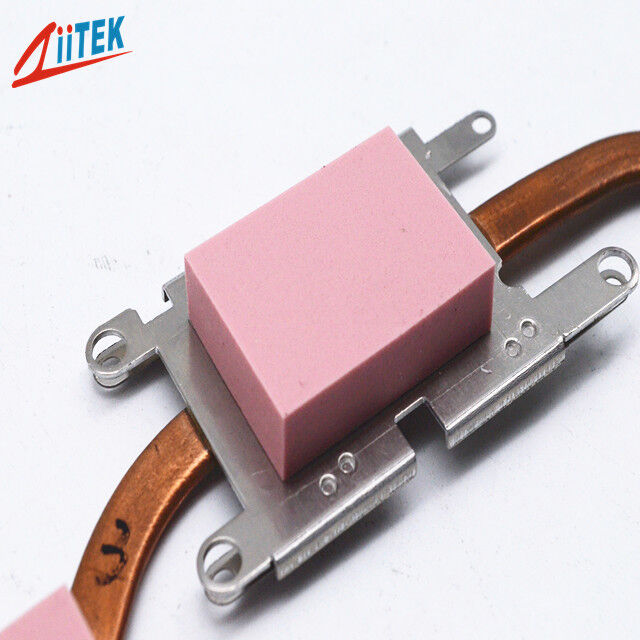

Customizable 1.5W/Mk High-Temperature Silicone Flexible Thermal Pads With Self Adhesive For LED Lighting Heat Application
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Ziitek TIF®100-30-25S Series is a well-balanced,general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Motherboard chip
> Radiator
> AI Processors AI Servers
| Typical Properties of TIF®100-30-25S Series | |||
| Property | Value | Test method | |
| Color | Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | - | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | - | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | >1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specification
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
![]()
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
