Thermal Pad 0.5mm 1mm 1.5mm 2mm Highly Efficient Thermal Conductivity 5.0 W/MK

Thermal Pad 0.5mm 1mm 1.5mm 2mm Highly Efficient Thermal Conductivity 5.0 W/MK

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

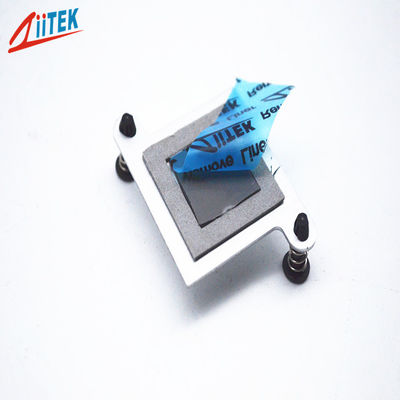

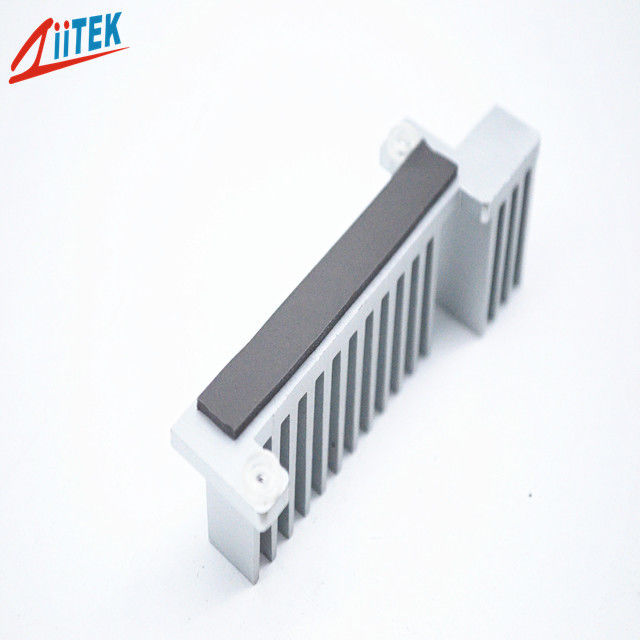

The TS-TIF ®100C 5045-11 Series is a silicone-based thermal material designed to fill the gapsbetween heat-generating components and liquid cooling plates or metal bases. lts flexibility andelasticity make it ideal for covering highly uneven surfaces. With excellent thermal conductivity, itefficiently transfers heat from heat-generating elements or PCBs to liquid cooling plates or metalheat dissipation structures, thereby improving the cooling efficiency of high-power electroniccomponents and extending the lifespan of the equipment.

Features:
> Excellent thermal conductivity 5.0.0W/mK

> Naturally tacky needing no further adhesive coating
> Soft and compressible for low stress applications
> Broad range of hardnesses available
> Available in varies thicknesses

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.



Product Specification:

Product Thicknesses: 0.012"(0.30mm)~0.200"(5.00mm)

Product Sizes: 8" x 16"(203mm x406mm)
Custom die-cut shapes and thicknesses are available.Please contact us for details.
Store in a cool, dry place, away from fire and sunlight.For more information, refer to the Material Safety Data Sheet .

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
