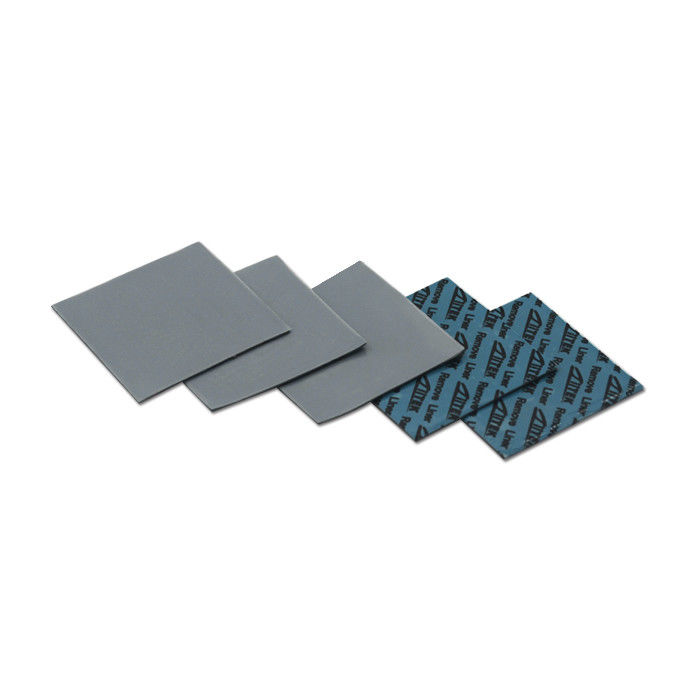

6.5W High Quality Customized Silicone Thermal Pad Thermal Gap Filler Insulation Sheet For LED CPU GPU MOS

6.5W High Quality Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

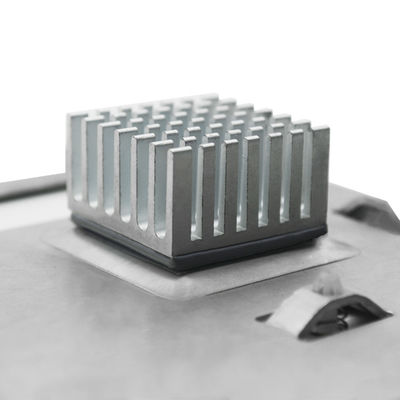

The TS-TIF ^®100C 6530-11 Series is a silicone-based thermal material designed to fill the gapsbetween heat-generating components and liquid cooling plates or metal bases. lts flexibility andelasticity make it ideal for covering highly uneven surfaces. With excellent thermal conductivity, itefficiently transfers heat from heat-generating elements or PCBs to liquid cooling plates or metalheat dissipation structures, thereby improving the cooling efficiency of high-power electroniccomponents and extending the lifespan of the equipment.

Features:
> Excellent thermal conductivity 6.5W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating

> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.



Product Specification:

Product Thicknesses: 0.012"(0.30mm)~0.200"(5.00mm)

Product Sizes: 8" x 16"(203mm x406mm)
Custom die-cut shapes and thicknesses are available.Please contact us for details.
Store in a cool, dry place, away from fire and sunlight.For more information, refer to the Material Safety Data Sheet .

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .



Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
