Electrical Insulation Thermal Conductive Silicone Pad Thermal Pad Thickness 0.5 To 5.0mm Thermal Gap Filler Pad

Electrical Insulation Thermal Conductive Silicone Pad Thermal Pad Thickness 0.5 To 5.0mm Thermal Gap Filler Pad

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF100-10-02S Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Electrical Insulation Thermal Conductive Silicone Pad Thermal Pad Thickness 0.5 To 5.0mm Thermal Gap Filler Pad Keywords: Thermal Pads
Thinkness Range: 0.020"(0.5mm)~0.200" (5.0mm) Sample: Sample Avaliable
Flam Rating: 94 V0 Hardness: 45 Shore 00
Thermal Conductivity: 1.0W/mK Color: Gray
Certification: RoHS And UL Recognized
Highlight:

thermal conductive silicone pad

,

electrical insulation thermal pad

,

thermal gap filler pad

Electrical Insulation Thermal Conductive Silicone Pad Thermal Pad Thickness 0.5 To 5.0mm Thermal Gap Filler Pad



Company Profile



Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Product description



TIF100-10-02S Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.



Features



> Good thermal conductive : 1.0W/mK
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> Naturally tacky needing no further adhesive coating
> RoHS compliant
> UL recognized



Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Display card
> Mainboard/mother board
> Notebook
> Power supply



Typical Properties of TIF100-10-02S Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Specific Gravity 2.3g/cc ASTM D297
Thickness range 0.020"(0.5mm)~0.200" (5.0mm) ASTM C351
Hardness (thickness ≥1.0mm) 45 Shore 00 ASTM 2240
Dielectric Breakdown Voltage >5500 VAC ASTM D412
Operating Temp -40 ~160℃ *******
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity  1.0X1012Ohm-meter    ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 1.0W/mK ASTM D5470



Product Specification


Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes:  8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming

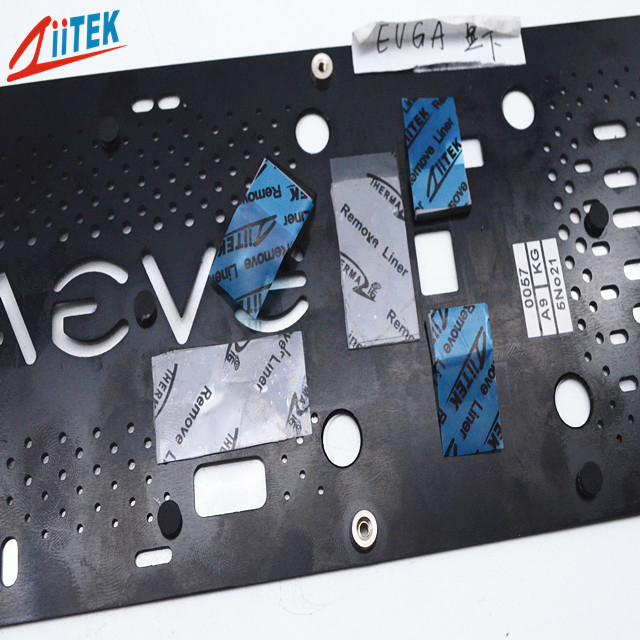

Electrical Insulation Thermal Conductive Silicone Pad Thermal Pad Thickness 0.5 To 5.0mm Thermal Gap Filler Pad

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
