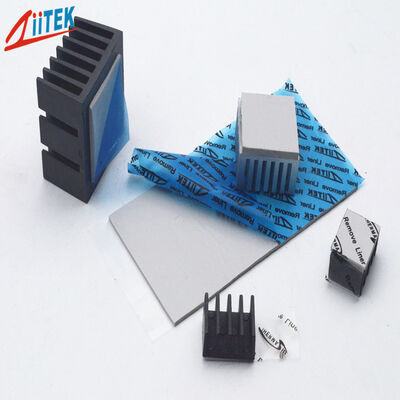

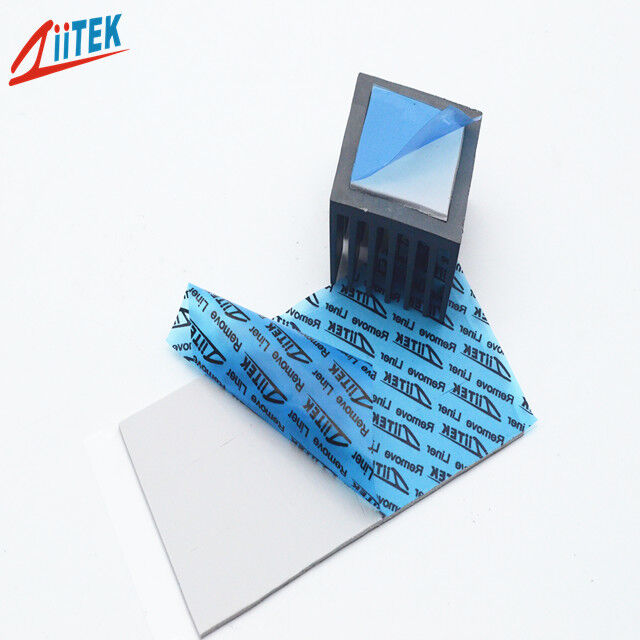

Good Insulation Performance 7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF500-75-11US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Good Insulation Performance 7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors	Keywords:	Thermal Silicone Pads
Thickness:	0.50mm~5.0mm(0.020"~0.200")	Color:	Dark Gray
Density:	3.45 G/cm³	Dielectric Breakdown Voltage:	>5000 VAC
Thermal Conductivity:	7.5W/m-K	Construction:	Ceramic Flled Silicone Elastomer

Good Insulation Performance 7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®500-75-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features

> Excellent thermal conductivity 7.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator

Typical Properties of TIF^®500-75-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.45		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.75)	0.040~0.200 (1.00~5.00)	ASTM D374
Hardness	50 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	8.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal conductivity(w/m-K)	7.5		ASTM D5470
	7.5		ISO22007
Fire rating	V-0		UL94 (E331100)

Product Specifications:

Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
