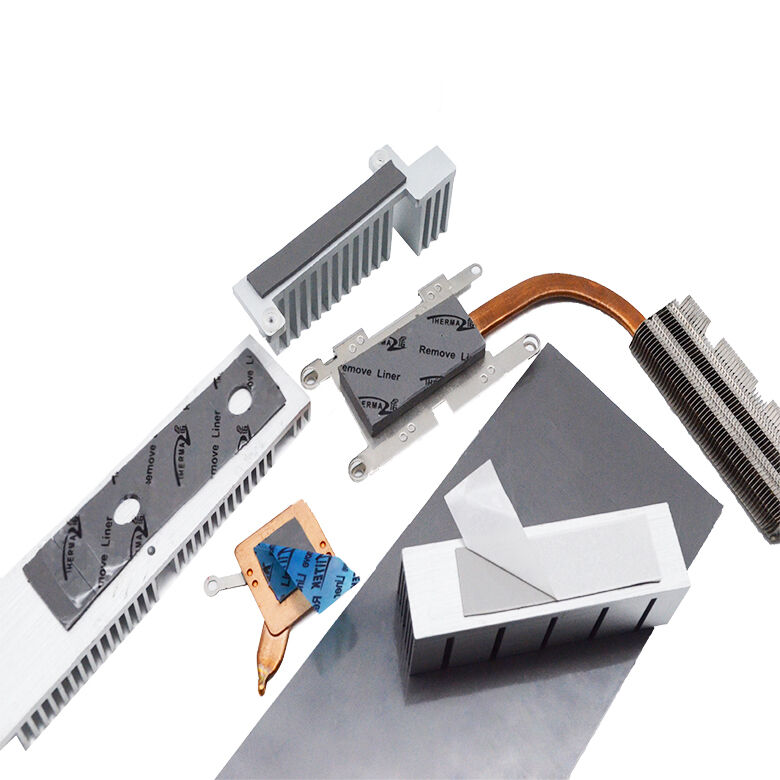

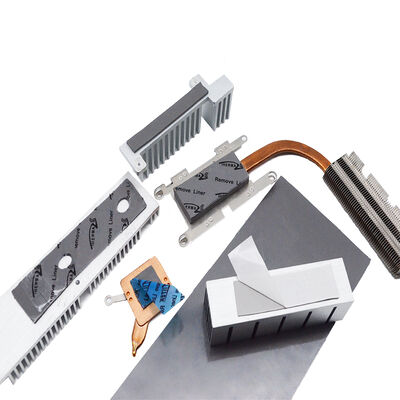

Self-Adhesive Gray Thermal Silicone Conductive Pad 7.5W For AI Processors AI Servers Heat Dissipation

Self-Adhesive Gray Thermal Silicone Conductive Pad 7.5W For AI Processors AI Servers Heat Dissipation

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF700PUS
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Self-Adhesive Gray Thermal Silicone Conductive Pad 7.5W For AI Processors AI Servers Heat Dissipation Keywords: Thermal Silicone Conductive Pads
Thickness: 0.50mm~5.0mm(0.020"~0.200") Color: Gray
Density: 3.45 G/cm³ Dielectric Breakdown Voltage: >5500 VAC
Thermal Conductivity: 7.5W/m-K Construction: Ceramic Flled Silicone Elastomer
Hardness: 50(Shore OO)

Self-Adhesive Gray Thermal Silicone Conductive Pad 7.5W For AI Processors AI Servers Heat Dissipation



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL


The TIF®700PUS Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.


Features


> Excellent thermal conductivity 7.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications



> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices



Typical Properties of TIF®700PUS Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.45 ASTM D792
Thickness Range(inch/mm)

0.020~0.030

(0.50~0.75)

0.040~0.200

(1.00~5.00)

ASTM D374
Hardness 50 Shore 00 20 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 8.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Thermal conductivity(w/m-K) 7.5 ASTM D5470
7.5 ISO22007
Fire rating V-0 UL94 (E331100)



Product Specifications​:



Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Self-Adhesive Gray Thermal Silicone Conductive Pad 7.5W For AI Processors AI Servers Heat Dissipation 0

Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
