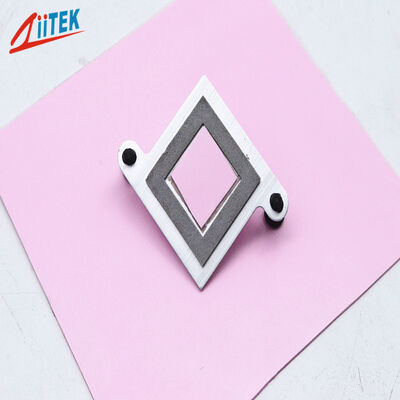

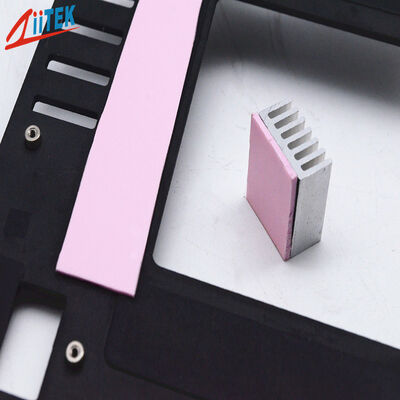

Thermal Gap Pad Materials 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation

Thermal Gap Pad Materials 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF100-15-14S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Thermal Gap Pad Materials 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation Construction: Ceramic Flled Silicone Elastomer
Thickness: 0.25mm~5.0mm(0.010"~0.200") Color: Pink
Density: 2.3 G/cm³ Dielectric Breakdown Voltage: >5500 VAC
Thermal Conductivity: 1.5W/m-K Keywords: Thermally Conductive Gap Filler Pads

Thermal Gap Pad Materials 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation



Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL


The TIF®100-15-14S Series is a well-balanced, general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.


Features


> Good thermal conductivity 1.5W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications



> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®100-15-14S Series
Property Value Test method
Color Pink Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.3 ASTM D792
Thickness Range(inch/mm)

0.010~0.030

(0.25~0.50)

0.030~0.200

(0.75~5.00)

ASTM D374
Hardness 65 Shore 00 45 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Thermal conductivity(w/m-K) 1.5 ASTM D5470
1.5 ISO22007
Fire rating V-0 UL94 (E331100)



Standard Sheets Sizes:
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
