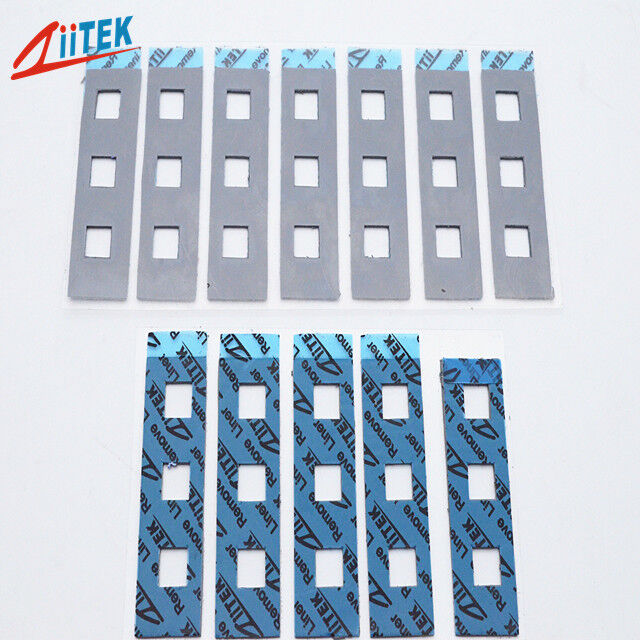

High Thermally Conductive 15W/MK Gray Thermally Gap Pads For 5G Base Stations

High Thermally Conductive 15W/MK Gray Thermally Gap Pads For 5G Base Stations

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF800SE
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: High Thermally Conductive 15W/MK Gray Thermally Gap Pads For 5G Base Stations Color: Gray
Application: 5G Base Stations Thermal Conductivity(W/mK): 15.0
Density (g/cm³): 3.25 Hardness: 35 Shore 00
Keywords: Thermal Gap Pad Thickness Range: 0.030"~0.200"(0.75mm~5.0mm)
Highlight:

15W/MK thermal gap pads

,

gray silicone thermal pads

,

5G base station thermal pads

High Thermally Conductive 15W/MK Gray Thermally Gap Pads For 5G Base Stations



Company Profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



The TIF®800SE Series is a high-end compressible thermal pad that meets top-level cooling requirements while also ensuring excellent assembly workability. Through an innovative material formulation, it successfully achieves an ideal combination of ultra-high thermal conductivity and moderate hardness.This unique performance balance allows it to efficiently handle the cooling challenges posed by extremely high heat fluxes,kwhile álso possessing good mechanical_strength and compressibility, making it easy to manufacture and install. It provides a thermal interface material solution with both outstanding heat dissipation performance and high reliability for high-power-density electronic devices.



Features



> Excellent thermal conductivity 15.0W/mK
> Good softness and filling properties
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance

> Available in varies thicknesses



Applications


Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.



Typical Properties of TIF®800SE Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.25 ASTM D792
Thickness Range(inch/mm) 0.030 0.040~0.200 ASTM D374
(0.75) (1.0~5.00)
Hardness 35 Shore 00 35 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 8.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 15.0W/m-K ASTM D5470
15.0W/m-K ISO22007



Product Specification


Product Thicknesses: 0.030"(0.75mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)



The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

High Thermally Conductive 15W/MK Gray Thermally Gap Pads For 5G Base Stations

FAQ:



Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.



Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
