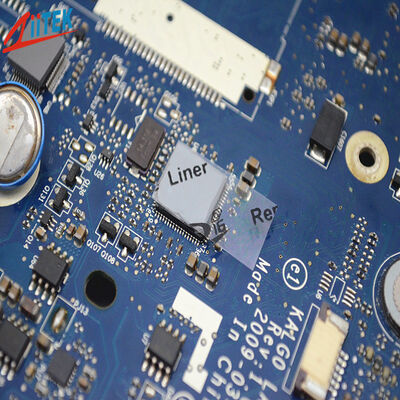

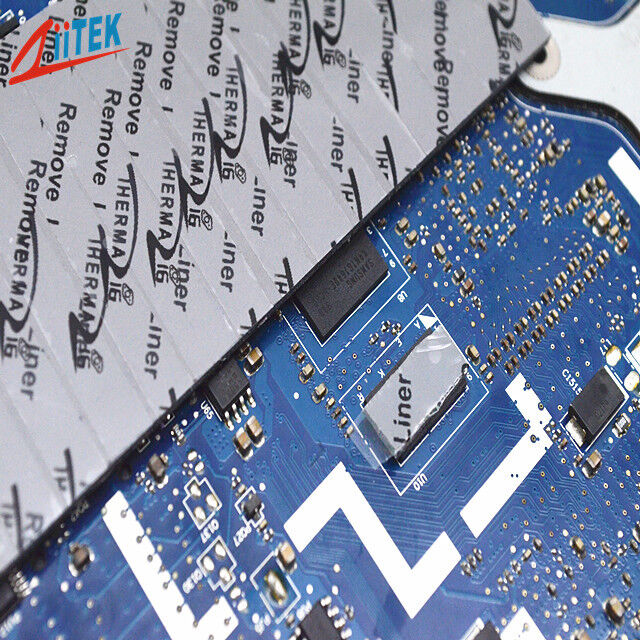

Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications

Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications

Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications
video
Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF100-11S
Document: TIF100-11S_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Products Name: Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications Keywords: Thermal Pad
Sample: Sample Free Fire Rating: 94 V0
Color: Dark Gray Thermal Conductivity: 1.5W/m-K
Dielectric Constant@1MHz: 4.5 Breakdown Voltage（V/mm)）: ≥5500
Thickness Range: 0.010"~0.200"(0.25mm~5.0mm) Application: Cooling Applications

Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications
TIF®100-11S Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Key Features
  • Good thermal conductivity: 1.5W/mK
  • Moldability for complex parts
  • Soft and compressible for low stress applications
  • Naturally tacky needing no further adhesive coating
  • Available in varies thicknesses
Applications
  • Computer / communication equipment
  • Laptop / tablet / PC server
  • New energy power battery / vehicle equipment
  • Switching power supply / UPS
  • Video / security equipment
  • Any heating element and radiator
  • Home appliance industry
  • Power module
  • Wearable device
  • Solar photovoltaic panel
Technical Specifications
Property Value Test Method
Color Dark Gray Visual
Construction & Composition Ceramic filled silicone elastomer -
Density (g/cm³) 2.3 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00		 ASTM D374
Hardness (Shore 00) 65 | 45 ASTM 2240
Continuous Use Temp -40 to 200℃ -
Breakdown Voltage (V/mm) ≥ 5500 ASTM D149
Dielectric Constant@1MHz 4.5 ASTM D150
Volume Resistivity(Ohm-meter) ＞1.0×10¹²  ASTM D257
Thermal Conductivity (W/m-K) 1.5 ASTM D5470 / ISO22007
Fire Rating V-0 UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications 0

Packaging & Lead Time
Packaging Details:
• PET film or foam for protection
• Paper card to separate each layer
• Export carton inside and outside
• Customized to meet customer requirements
Lead Time: Quantity: 5000 pieces - To be negotiated
Frequently Asked Questions
  • Q: Are you a trading company or manufacturer?
    A: We are manufacturer in China.
  • Q: What thermal conductivity test method was used?
    A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
  • Q: Is GAP PAD offered with an adhesive?
    A: Most thermal gap pad surfaces have double side natural inherent tack. Non-stick surface can also be treated according to customer's requirements.
  • Q: How do I place an order?
    A: Click the "Send messages" button, fill out the form with your questions and purchase requests, and we will reply as soon as possible via email or online.
About Ziitek
Ziitek is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective thermal management solutions. Our facilities include advanced production equipment, full test equipment, and fully automatic coating production lines supporting production of high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products are UL94 V-0, SGS and ROHS compliant.
