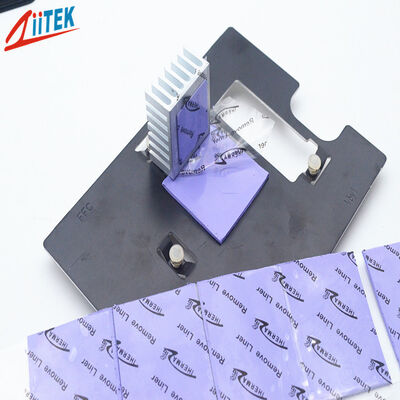

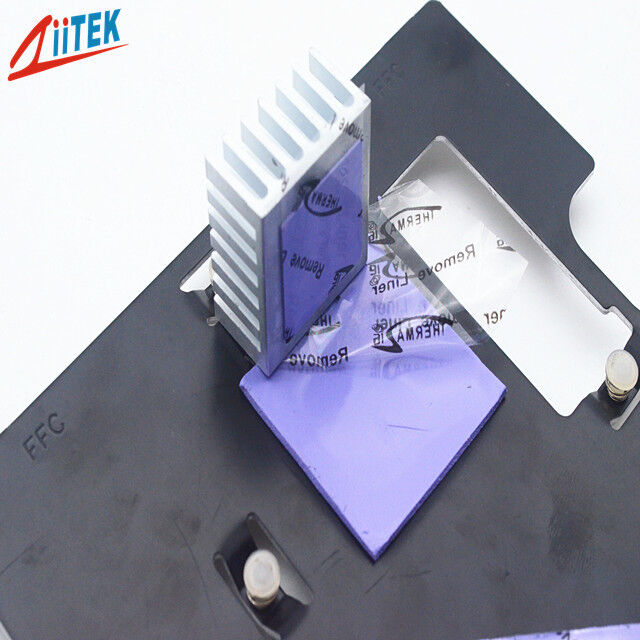

Low Dielectric Constant Effectively Reduces Signal Loss Thermally Gap Filler Pads For 5G Base Station

Low Dielectric Constant Effectively Reduces Signal Loss Thermally Gap Filler Pads For 5G Base Station

Low Dielectric Constant Effectively Reduces Signal Loss Thermally Gap Filler Pads For 5G Base Station
video
Low Dielectric Constant Effectively Reduces Signal Loss Thermally Gap Filler Pads For 5G Base Station
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF100N-15-16E
Document: TIF100N-15-16E_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*13*12cm cartons
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Product Ame: Low Dielectric Constant Effectively Reduces Signal Loss Thermally Gap Filler Pads For 5G Base Station Thickness: 0.25~5.0mm
Hardness: 65/35 Shore 00 Density: 1.5g/cm³
Dielectric Strength(V/mm): ≥5500 Thermal Conductivity: 1.5W/m-K
Color: Purple Keywords: Thermally Gap Filler Pads
Application: 5G Base Station
Highlight:

5G base station thermal gap filler pads

,

low dielectric constant silicone thermal pad

,

signal loss reducing thermally conductive pads

Product Description

The TIF® 100N-15-16E Series is a low-dielectric thermal pad — a flexible thermal insulation material developed for high-frequency, high-integration, and signal-sensitive electronic devices. It provides excellent thermal conductivity while maintaining low dielectric electrical properties.

This balanced design combines good surface fit and excellent operational convenience, taking into account both effective heat dissipation and low-dielectric performance. It meets the dual requirements of thermal management and signal transmission for precision electronic devices, with stable performance and strong practicality.

Key Features
  • Good thermal conductivity
  • Excellent softness and fillability
  • Self-adhesive without the need for additional surface adhesive
  • Highly compressible, easy to install and operate
  • Low dielectric constant effectively reduces signal loss
Applications
  • Millimeter wave radar
  • Semiconductor microwave components
  • 5G base station
  • RF power amplifier
  • High performance computing / server memory
Typical Properties of TIF® 100N-15-16E Series
Property Value Test Method
Color Purple Visual
Construction & Composition Ceramic filled silicone elastomer —
Density (g/cm³) 1.5 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 / 0.25~0.50
0.030~0.200 / 0.75~5.00		 ASTM D374
Hardness (Shore 00) 65 / 35 ASTM 2240
Recommended Operating Temperature -40 to 200°C —
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Volume Resistivity (Ohm-meter) >1.0×10¹² ASTM D257
Flame Rating V-0 UL 94 (E331100)
Thermal Conductivity (W/m·K) 1.5 ASTM D5470
Thermal Conductivity (W/m·K) 1.5 ISO 22007
Product Specification

Standard Thickness: 0.010" (0.25 mm) to 0.200" (5.00 mm), with increments of 0.010" (0.25 mm).

Standard Size: 16" × 16" (406 mm × 406 mm)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Company Profile

Ziitek is a high-tech enterprise dedicated to the R&D, manufacture, and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high-performance thermal products including:

  • Thermal gap pad
  • Thermal graphite sheet / film
  • Thermal double-sided tape
  • Thermal insulation pad
  • Thermal grease
  • Phase change material
  • Thermal gel

All products are compliant with UL94 V-0, SGS, and RoHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Packaging & Lead Time

Packaging Details:

  • PET film or foam for protection
  • Paper card to separate each layer
  • Export carton inside and outside
  • Customized packaging available to meet customer requirements

Lead Time: Quantity of 5000 pieces (estimated time to be negotiated).

Thermal conductive silicone pad product sample — purple TIF 100N-15-16E series gap filler pad
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer based in China.
Q: How do I find the right thermal conductivity for my application?
A: The appropriate thermal conductivity depends on the wattage of your power source and heat dissipation requirements. Please provide details about your application and power specifications so we can recommend the most suitable thermal conductive materials.
Q: Do you accept custom orders?
A: Yes, we welcome custom orders. Customization options include dimensions, shape, color, and adhesive coating (single or double-sided) or fiberglass coating. To place a custom order, please provide a drawing or detailed specifications.
Q: What is a Thermal Silicone Pad?
A: A thermal silicone pad is a pre-formed TIM typically made of a silicone-based material and thermally conductive fillers. It is designed to fill gaps between heat sources and heat sinks. Depending on the product formulation, thermal silicone pads can also provide electrical insulation.
Q: What are the advantages of Thermal Silicone Pads?
A: Key advantages include easy installation, controlled thickness, good flexibility, and effective gap-filling capability. Depending on the application, thermal silicone pads can also be designed with different levels of thermal conductivity, hardness, flame resistance, and electrical insulation.
