| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF030AB-05S |
| Minimum Order Quantity: | 1000tube |
|---|---|
| Price: | 0.1-100USD/tube |
| Packaging Details: | 50cc/tube |
| Delivery Time: | 3-8 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100000tubes/MONTH |
| Application: | Automotive Electronics | Color: | Blue |
|---|---|---|---|
| Cure @25℃: | 60min | Pot Life @25℃: | 30min |
| Thermal Conductivity: | 3.0W/Mk | ||
| High Light: | Automotive Electronics Thermally Conductive Putty,UL Thermally Conductive Putty,3w/mk heat insulation putty |
||

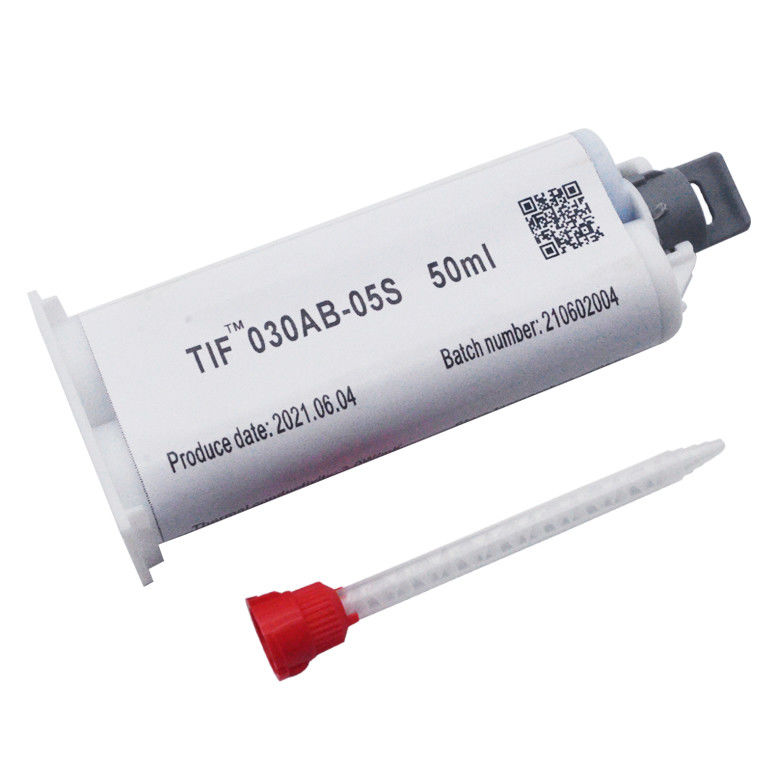

High Performance 3W/MK Thermally Conductive Putty Two Compounds For Automotive Electronics
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

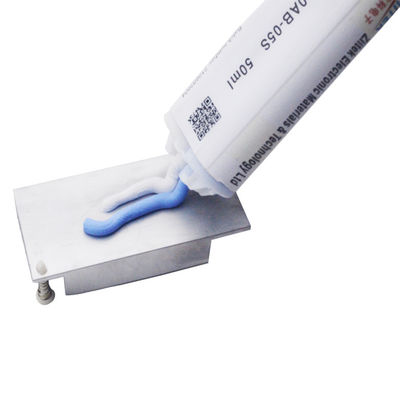

Ziitek TIF030AB-05S Series is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.
TIF030AB-05S-Datasheet-REV02.pdf
Features:
| 1. Good thermal conductivity: 3 W/mk |
| 2. Two-part formulation for easy storage |
| 3. Excellent low and high temperature mechanical and chemical stability |
| 4. Ultra-confirming low-streee interface application |
| 5. Ambient or accelerated cure schedules |
| 6. Optimized shear thinning characteristics for ease of dispensing |
Applications:
| 1. Computer and peripherals |
| 2. Telecommunications |
| 3. Automotive electronics |
| 4. Thermally conductive vibration dampening |
| 5. Heat sink any heat generating semiconductor |
| Typical Properties of TIF030AB-05S Series | |||
|
Typical Uncured Material
|
|||
| Property | Numerical | Test Method | |
| Color/Part A | White | Visual | |
| Color/Part B | Blue | Visual | |
| Viscosity as Mixed (cps) | 900,000 cps | GB/T 10247 | |
| Density | 3.1g/cc | ASTM D792 | |
| Mix Ratio | 1:1 | ****** | |
| Shelf Life@25℃ | 6 months | ****** | |
| Cure Schedule | |||
| Pot Life @25℃ | 30min | ****** | |
| Cure @25℃ | 60min | ****** | |
| Cure @100℃ | 30min | Visual | |
| Cure Properties | |||
| Color | Blue | Visual | |
| Hardness | 45 shore00 | ASTM D2240 | |
| Continuous Use Temp | ﹣45~200℃ | ****** | |
| Voltage Strength | 200 V/mil | ASTM D149 | |
| Dielectric Constant | 4.6MHz | ASTM D150 | |
| Volume Resistivity | 1012 Ohm-meter | ASTM D257 | |
| Flame Rating | 94V0 | E331100 | |
| Thermal Conductivity | 3.0W/Mk | ISO22007-2 | |
| Specific Heat Capacity | 2.2MJ/m3K | ISO22007-2 | |
Product Specifications:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Q&A
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
